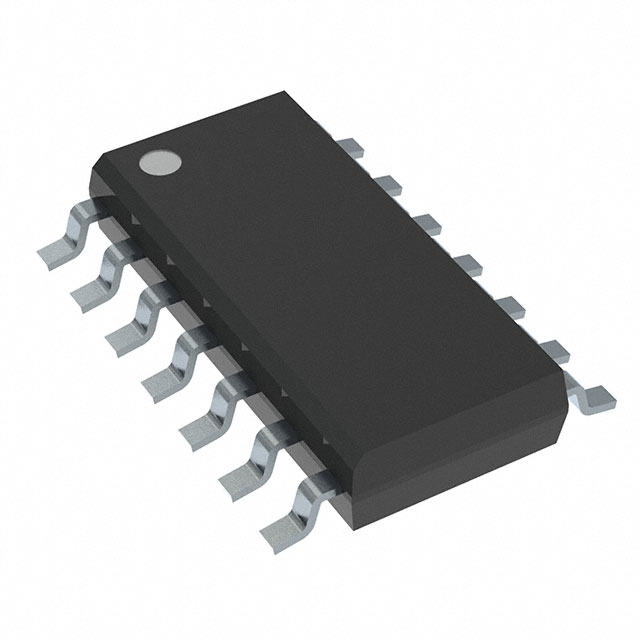

NJM2901CG-TE2
ActiveNisshinbo Micro Devices Inc
IC COMPARATOR 4 GEN PUR 14SOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJM2901CG-TE2
ActiveNisshinbo Micro Devices Inc
IC COMPARATOR 4 GEN PUR 14SOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM2901CG-TE2 |
|---|---|
| Current - Input Bias (Max) [Max] | 0.25 µA |
| Current - Output (Typ) | 16 mA |
| Current - Quiescent (Max) [Max] | 2.5 mA |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | TTL, MOS, Open-Collector |
| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 14-SOP |
| Type | General Purpose |
| Voltage - Input Offset (Max) | 5 mV |
| Voltage - Supply, Single/Dual (±) [Max] | 36 V, 18 V |
| Voltage - Supply, Single/Dual (±) [Min] | 2 V, 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2500 | $ 0.47 | |
| Cut Tape (CT) | 1 | $ 1.10 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 1.10 | ||
| 10 | $ 0.98 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.63 | |||
| 1000 | $ 0.50 | |||
| Tape & Reel (TR) | 2500 | $ 0.41 | ||
Description
General part information
NJM2901 Series
Comparator General Purpose MOS, Open-Collector, TTL 14-SOP
