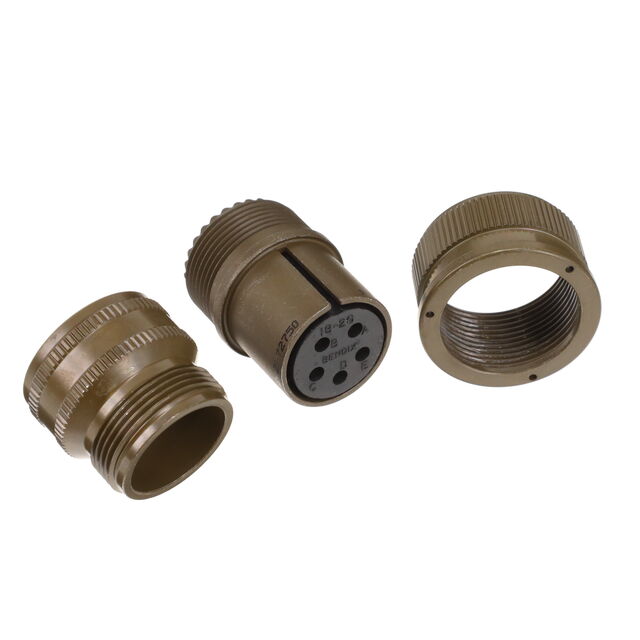

MS3106A18-20S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106A18-20S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A18-20S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	20
Shell Size - Insert [Min]	18
Shielding	Unshielded

MS3106A18 Series

Part	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Connector Type	Mounting Type	Orientation	Contact Material	Insert Material	Primary Material	Features	Shell Material	Contact Finish - Mating	Applications	Color	Shielding	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Voltage Rating	Current Rating (Amps)	Ingress Protection	Grade	Shell Size - Insert	Number of Positions
Amphenol Industrial Operations MS3106A18-23P
Amphenol Industrial Operations MS3106A18-7P
Amphenol Industrial Operations MS3106A18-22S-RES
Amphenol Industrial Operations MS3106A18-31P
Amphenol Industrial Operations MS3106A18-20S	MIL-DTL-5015	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Female Sockets Plug	Free Hanging (In-Line)	N	Copper Alloy	Neoprene	Metal	Backshell Coupling Nut	Aluminum Alloy	Silver	Marine Military	Olive Drab	Unshielded	18	20
Amphenol Industrial Operations MS3106A18-5P	MIL-DTL-5015	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Male Pins Plug	Free Hanging (In-Line)	N	Copper Alloy	Neoprene	Metal	Backshell Coupling Nut	Aluminum Alloy	Silver	Marine Military	Olive Drab	Unshielded			900 VAC 1250 VDC	13 A 23 A	Environment Resistant	Military	18-5
Amphenol Industrial Operations MS3106A18-14P
Amphenol Industrial Operations MS3106A18-1PZ
Amphenol Industrial Operations MS3106A18-1S W/P CAP
Amphenol Industrial Operations MS3106A18-1S	MIL-DTL-5015	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Female Sockets Plug	Free Hanging (In-Line)	N	Copper Alloy	Neoprene	Metal	Backshell Coupling Nut	Aluminum Alloy	Silver	Marine Military	Olive Drab	Unshielded	18	1						10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.49
		10	$ 28.45
		25	$ 27.22
		50	$ 26.35
		100	$ 25.47
		250	$ 24.06

Description

General part information

MS3106A18 Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
