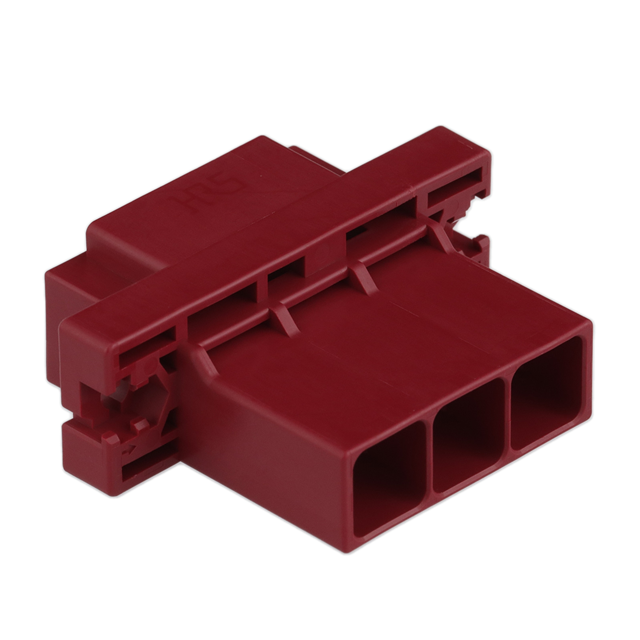

DF60FR-3EP-10.16C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 3POS 10.16MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 3POS 10.16MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF60FR-3EP-10.16C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Blade Pin
Fastening Type	Latch Holder
Features	Mating Flange
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	10.16 mm
Pitch [x]	0.4 in

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Fastening Type	Color	Features	Number of Rows	Contact Type	Insulation Material	Contact Finish - Post	Termination	Material Flammability Rating	Shrouding	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Voltage Rating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Style	Current Rating (Amps)	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Material
Hirose Electric USA, Inc. DF60FR-3EP-10.16C	Contacts Not Included	105 ░C	-55 °C	Crimp	Plug	Free Hanging (In-Line)	10.16 mm	0.4 in	Latch Holder	Black	Mating Flange	1	Blade Pin	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric USA, Inc. DF60FR-3S-10.16C	Contacts Not Included	105 ░C	-55 °C	Crimp	Receptacle	Free Hanging (In-Line)	10.16 mm	0.4 in	Latch Lock	Black		1	Female Socket	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric USA, Inc. DF60FR-3P-10.16DSA(50)		105 ░C	-55 °C		Header	Through Hole			Latch Holder		Board Guide Glow Wire Compliant	1	Male Blade	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Solder	UL94 V-0	Shrouded - 4 Wall	All	0.846 "	21.5 mm	0.203 Ám	8 Áin	Black	1000 VAC	Rectangular	0.15 in	3.81 mm	Board to Cable/Wire	Varies by Wire Gauge	Gold	10.16 mm	0.4 in	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Black 0.400" (10.16mm)
