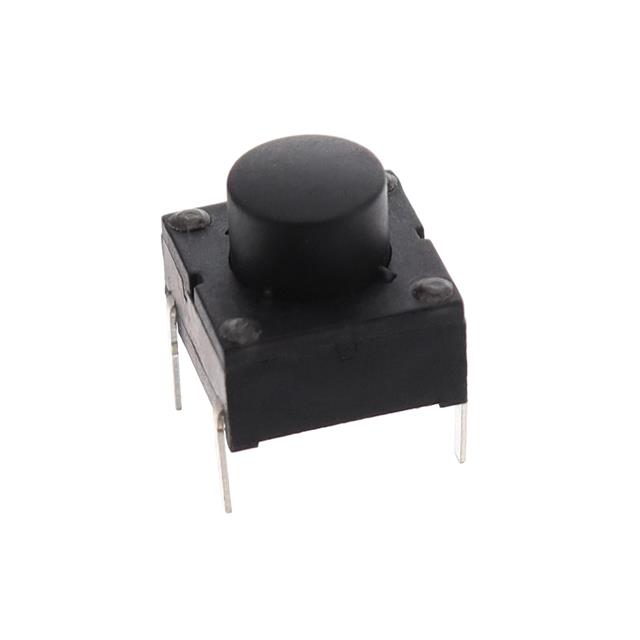

ME019.5F3502

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	ME019.5F3502

Actuator Height off PCB, Vertical	9.5 mm
Actuator Material	Polyamide (PA6T), Nylon 6T
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole
Operating Force	350 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

Part	Actuator Height off PCB, Vertical	Actuator Material	Actuator Orientation	Switch Function	Outline [y]	Outline [x]	Termination Style	Actuator Type	Operating Force	Mounting Type	Illumination	Circuit	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Ingress Protection
CIT Relay and Switch ME019.5F3502	9.5 mm	Polyamide (PA6T) Nylon 6T	Top Actuated	Off-Mom	10 mm	10 mm	PC Pin	Standard	350 gf	Through Hole	Non-Illuminated	SPST-NO	0.05 A 24 VDC	85 °C	-40 °C	1 mm	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
