Q-0703O000R012i

Active

Amphenol Custom Cable

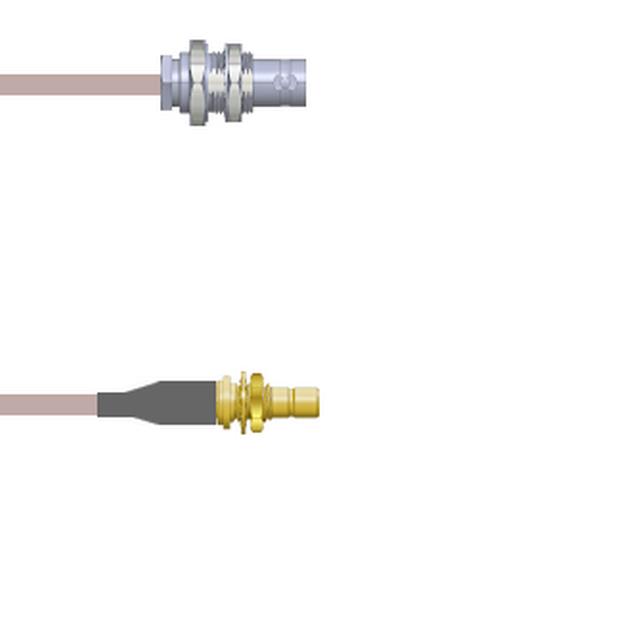

CBL ASSY BNC-SMB JACK-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0703O000R012i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0703O000R012i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0703O0 Series

Part	Overall Impedance	1st Connector	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Connector Mounting Type	1st Connector Mounting Feature	2nd Connector	Length	Length	Length	Style	Features	Color	1st Contact Gender	2nd Contact Gender	Cable Type	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0703O000R003M	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	3 m	118.1 in	9.8 '	BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R003i	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	76.2 mm	3 in		BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R012i	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	304.8 mm	12 "		BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R2.5M	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	2.5 m	98.4 in	8.2 '	BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R084i	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	2.1 m	84 in	7 ft	BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R0.5M	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	50 cm	19.69 "		BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R006i	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	152.4 mm	6 in		BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R048i	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	1200 mm	48 in	4 ft	BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount
Amphenol Custom Cable Q-0703O000R018i	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack				BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0703O000R1.5M	50 Ohms	BNC Jack	Bulkhead - Front Side Nut	2 GHz	Panel Mount	Bulkhead - Front Side Nut	SMB Jack	1.5 m	59.1 in	4.9 ft	BNC to SMB	Shielded	Copper	Female	Female	RG-316 DB	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 148.79
		25	$ 145.92
		50	$ 143.05
		100	$ 140.18
		250	$ 137.31

Description

General part information

Q-0703O0 Series

Cable Assembly Coaxial BNC to SMB RG-316 DB 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
