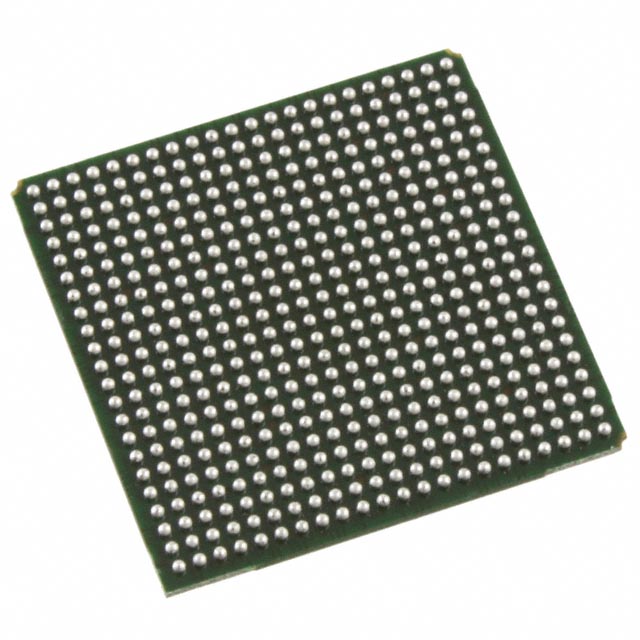

ORT42G5-2BMN484I

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 204 I/O 484FBGA

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 204 I/O 484FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	ORT42G5-2BMN484I

Mounting Type	Surface Mount
Number of Gates	643000
Number of I/O	204
Number of Logic Elements/Cells	10368
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	484-BBGA
Supplier Device Package	484-FPBGA (23x23)
Total RAM Bits	113664
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.425 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Logic Elements/Cells	Number of Gates	Total RAM Bits	Mounting Type	Supplier Device Package	Number of I/O	Package / Case
LATTICE SEMICONDUCTOR ORT42G5-2BMN484I	85 °C	-40 °C	1.425 V	3.6 V	10368	643000	113664	Surface Mount	484-FPBGA (23x23)	204	484-BBGA
LATTICE SEMICONDUCTOR ORT42G5-2BMN484C	70 °C	0 °C	1.425 V	3.6 V	10368	643000	113664	Surface Mount	484-FPBGA (23x23)	204	484-BBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ORCA® 4 Field Programmable Gate Array (FPGA) IC 204 113664 10368 484-BBGA
