APD3224CGCK-F01

Active

Kingbright

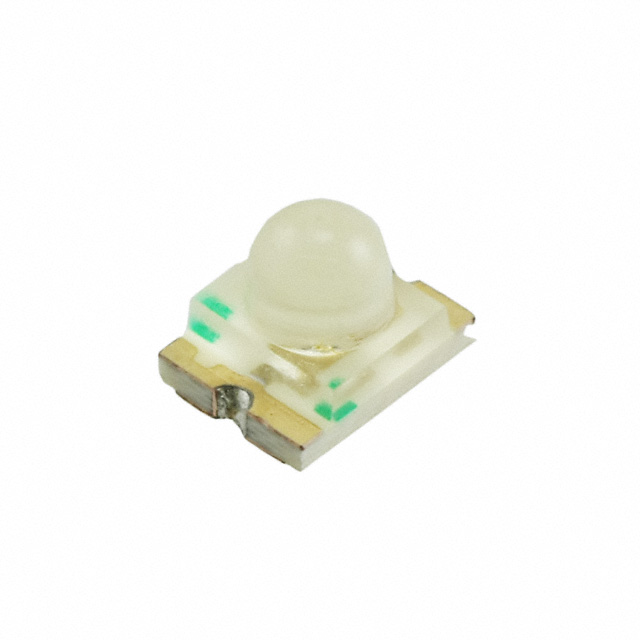

LED GREEN CLEAR SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APD3224CGCK-F01

Active

Kingbright

LED GREEN CLEAR SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APD3224CGCK-F01

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	2.4 mm
Lens Color	Colorless
Lens Size [diameter]	1.7 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	600 mcd
Mounting Type	Surface Mount
Package / Case	1210
Package / Case	3225 Metric
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.4 mm
Supplier Device Package	SMD
Viewing Angle	20 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	570 nm

APD3224 Series

Part	Color	Wavelength - Peak	Wavelength - Dominant	Lens Size [diameter]	Millicandela Rating	Lens Style	Package / Case	Package / Case	Height (Max) [Max]	Lens Transparency	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Viewing Angle	Voltage - Forward (Vf) (Typ)	Mounting Type	Configuration	Lens Color
Kingbright APD3224PBC/A-F01	Blue	468 nm	470 nm	1.8 mm	380 mcd	Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	3.2 V	Surface Mount	Standard	Colorless
Kingbright APD3224SGC-F01	Green	565 nm	568 nm	1.7 mm	100 mcd	Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	2.2 V	Surface Mount	Standard	Colorless
Kingbright APD3224CGCK-F01	Green		570 nm	1.7 mm	600 mcd	Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	2.1 V	Surface Mount	Standard	Colorless
Kingbright APD3224SECK-F01		610 nm	601 nm	1.7 mm	1600 mcd	Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	2.1 V	Surface Mount	Standard	Colorless
Kingbright APD3224SYCK-F01	Yellow	590 nm	590 nm	1.7 mm	1300 mcd	Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	2 V	Surface Mount	Standard	Colorless
Kingbright APD3224ZGC-F01	Green	515 nm	525 nm	1.7 mm		Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	3.3 V	Surface Mount	Standard	Colorless
Kingbright APD3224QBC/D-F01	Blue	460 nm	465 nm	1.7 mm	900 mcd	Round with Domed Top	2-SMD No Lead		2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	Chip LED	20 °	3.3 V	Surface Mount	Standard	Colorless
Kingbright APD3224ZGCK-F01	Green	515 nm	525 nm	1.7 mm	5800 mcd	Round with Domed Top	1210	3225 Metric	2.5 mm	Clear	20 mA	2.4 mm	3.2 mm	2-SMD	20 °	3.3 V	Surface Mount	Independent	Colorless
Kingbright APD3224YC-F01	Yellow	590 nm	588 nm	1.7 mm	50 mcd	Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	2.1 V	Surface Mount	Standard	Colorless
Kingbright APD3224SURCK-F01	Red	645 nm	630 nm	1.7 mm	1500 mcd	Round with Domed Top	1210	3225 Metric	2.4 mm	Clear	20 mA	2.4 mm	3.2 mm	SMD	20 °	1.95 V	Surface Mount	Standard	Colorless
