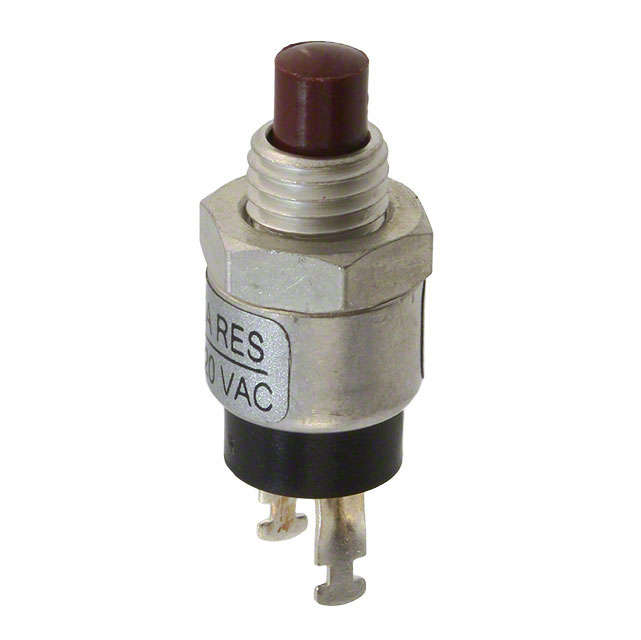

30-6UL

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 5A 120V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	30-6UL

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NC
Color - Actuator/Cap	Red
Current Rating (Amps)	5 A
Electrical Life	6000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	120 V

Part	Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Current Rating (Amps)	Actuator Marking	Circuit	Electrical Life	Panel Cutout Dimensions [diameter]	Switch Function	Mounting Type	Voltage Rating - AC	Color - Actuator/Cap	Features
Grayhill Inc. 30-6UL	Standard	Solder Lug	85 °C	-40 °C	Round Plunger	5 A	No Marking	SPST-NC	6000 Cycles	6.75 mm	On-Mom	Panel Mount Rear	120 V	Red
Grayhill Inc. 30-6-E	Standard	Solder Lug	85 °C	-40 °C	Round Plunger	1 A	No Marking	SPST-NC	1000000 Cycles	6.75 mm	On-Mom	Panel Mount Rear	115 V	Red	Epoxy Sealed Terminals
Grayhill Inc. 30-6-EW	Standard	Wire Leads	85 °C	-40 °C	Round Plunger	1 A	No Marking	SPST-NC	1000000 Cycles	6.75 mm	On-Mom	Panel Mount Rear	115 V	Red	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
