A1CWAC-P07MBC0-0000

Active

ODU

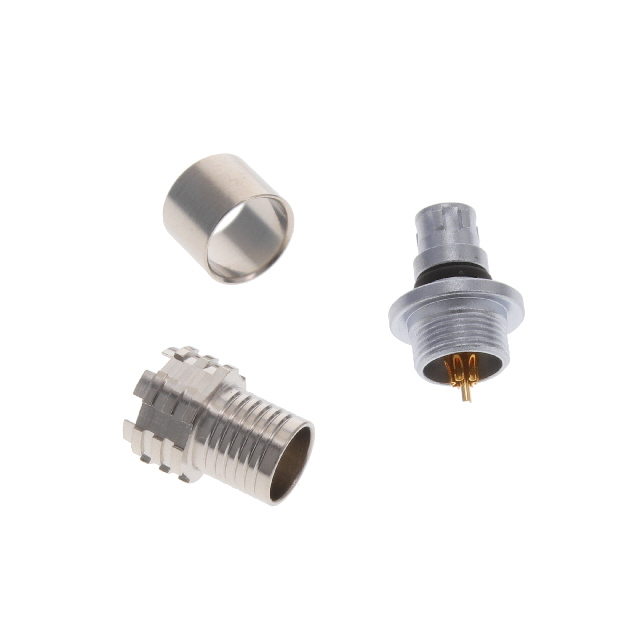

CONN PLUG MALE 7POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN PLUG MALE 7POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A1CWAC-P07MBC0-0000

Applications	Medical, Industrial, Military
Cable Opening [custom]	5 mm
Cable Opening [custom]	0.197 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	00
Shielding	Shielded
Voltage Rating	250 VDC

Part	Orientation	Color	Cable Opening [custom]	Cable Opening [custom]	Applications	Mounting Type	Voltage Rating	Primary Material	Shell Material	Contact Finish - Mating	Fastening Type	Ingress Protection	Connector Type	Features	Shielding	Shell Finish	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
ODU A1CWAC-P07MBC0-0000	A	Silver	5 mm	0.197 in	Industrial Medical Military	Free Hanging (In-Line)	250 VDC	Metal	Brass	Gold	Detent Lock Push-Pull	IP68 - Dust Tight Waterproof	Male Pins Plug	Backshell	Shielded	Chrome	00	-51 °C	125 °C	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.86

General part information

7 Position Circular Connector Plug, Male Pins Solder Cup
