SFW5S-2STMAE1LF
ActiveAmphenol ICC (FCI)

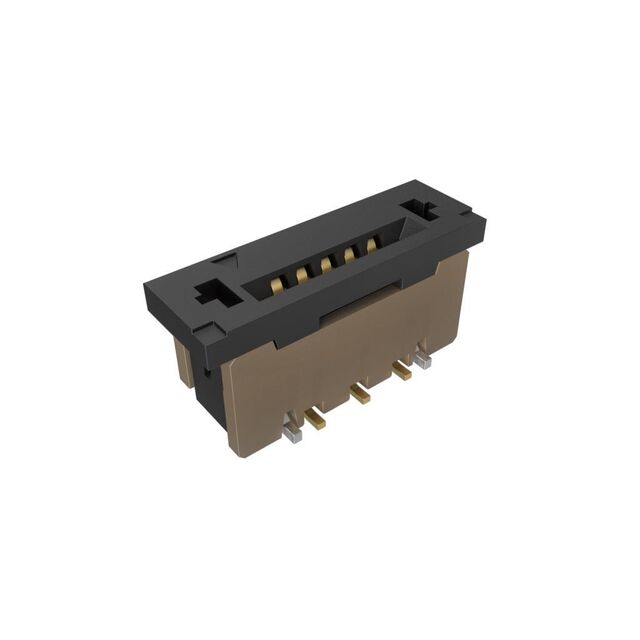

CONN FPC VERT 5POS 1MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SFW5S-2STMAE1LF
ActiveAmphenol ICC (FCI)
CONN FPC VERT 5POS 1MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW5S-2STMAE1LF |
|---|---|
| Actuator Material | Thermoplastic, Glass Filled |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 5.3 mm |
| Height Above Board | 0.209 in |
| Housing Color | Brown |
| Housing Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Kinked Pin |
| Voltage Rating | 100 V |
SFW5S Series
| Part | Mounting Type | Pitch [x] | Pitch [x] | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Contact Finish | Material Flammability Rating | Connector/Contact Type | Contact Material | Height Above Board | Height Above Board | Housing Material | Voltage Rating | Termination | FFC, FCB Thickness | Flat Flex Type | Actuator Material | Cable End Type | Actuator Color | Locking Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Surface Mount | 0.039 in | 1 mm | 20 | 85 °C | -55 °C | Brown | Gold | UL94 V-0 | Contacts Vertical - 1 Sided | Phosphor Bronze | 5.3 mm | 0.209 in | Thermoplastic Glass Filled | 100 V | Solder | 0.33 mm | FPC | Thermoplastic Glass Filled | |||
Amphenol ICC (FCI) | Surface Mount | 0.039 in | 1 mm | 10 | 85 °C | -55 °C | Brown | Tin | UL94 V-0 | Contacts Vertical - 1 Sided | Phosphor Bronze | 5.3 mm | 0.209 in | Thermoplastic Glass Filled | 100 V | Solder | 0.3 mm | CIC | Thermoplastic Glass Filled | Tapered | Black | Slide Lock |
Amphenol ICC (FCI) | Surface Mount | 0.039 in | 1 mm | 20 | 85 °C | -55 °C | Brown | Gold | UL94 V-0 | Contacts Vertical - 1 Sided | Phosphor Bronze | 5.3 mm | 0.209 in | Thermoplastic Glass Filled | 100 V | Kinked Pin | 0.3 mm | FPC | Thermoplastic Glass Filled | Straight Tapered | ||
Amphenol ICC (FCI) | Surface Mount | 0.039 in | 1 mm | 20 | 105 ░C | -55 °C | Brown | Tin | UL94 V-0 | Contacts Vertical - 1 Sided | Phosphor Bronze | 5.3 mm | 0.209 in | Thermoplastic Glass Filled | 100 V | Solder | 0.33 mm | FFC FPC | Thermoplastic Glass Filled |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.69 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| Tape & Reel (TR) | 1000 | $ 0.36 | ||
| 2000 | $ 0.34 | |||
| 3000 | $ 0.33 | |||
| 5000 | $ 0.31 | |||
| 7000 | $ 0.30 | |||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.29 | |||
Description
General part information
SFW5S Series
5 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
