AK8963C
ObsoleteAsahi Kasei Microdevices Corporation
SENSOR HALL I2C/SPI 14WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AK8963C
ObsoleteAsahi Kasei Microdevices Corporation
SENSOR HALL I2C/SPI 14WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AK8963C |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Current - Supply (Max) [Max] | 10 mA |
| Features | Sleep Mode |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | I2C, SPI |

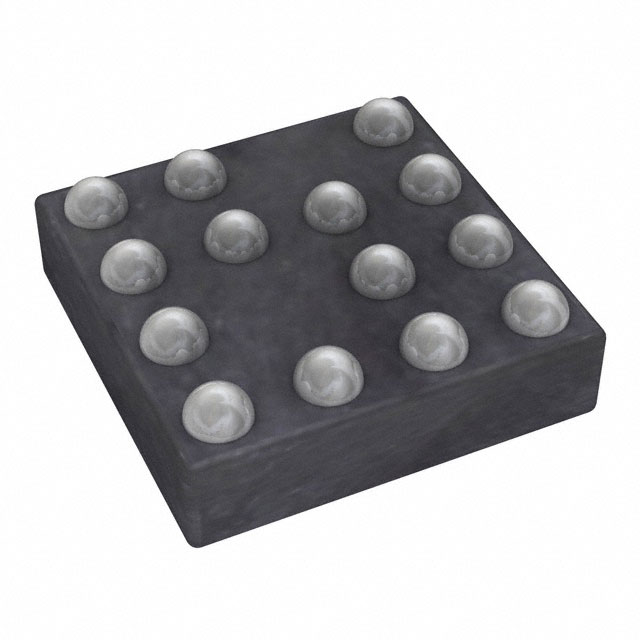

| Package / Case | WLCSP, 14-UFBGA |
| Resolution | 16 b |
| Sensing Range [Max] | 4.9 mT |
| Sensing Range [Min] | -4.9 mT |
| Supplier Device Package | 14-WLCSP (1.59x1.59) |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AK8963 Series
Hall Effect Sensor X, Y, Z Axis 14-WLCSP (1.59x1.59)
Documents
Technical documentation and resources
