PXM7011/10P/CR/0911

Active

BULGIN LIMITED

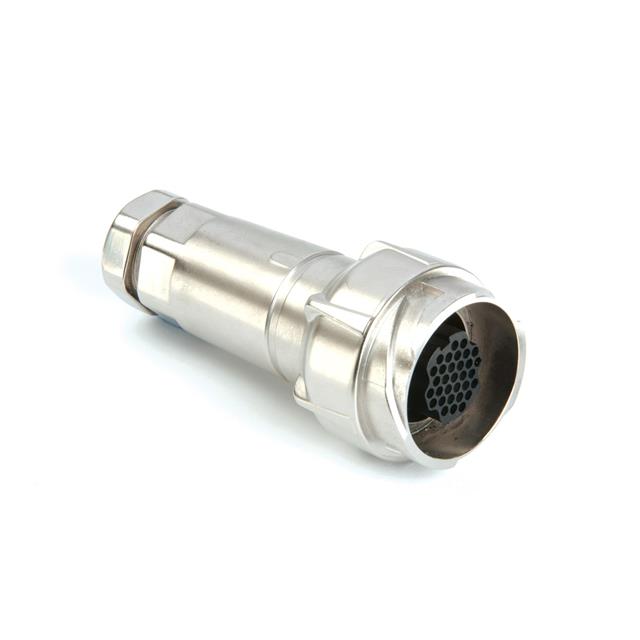

CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, ZINC BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 7000 Series Metal Wiring Instr +2

PXM7011/10P/CR/0911

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, ZINC BODY

Deep-Dive with AI

DocumentsDatasheet 7000 Series Metal Wiring Instr +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXM7011/10P/CR/0911

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Silver
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shielding	Unshielded
Type	For Male Pins

PXM7011 Series

Part	Ingress Protection	Contact Type	Shell Material	Connector Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Note	Shielding	Mounting Type	Type	Contact Shape	Housing Color	Fastening Type	Features	Shell Finish	Primary Material	Number of Positions	Contact Material	Backshell Material, Plating	Current Rating (Amps)	Color	Termination	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PXM7011/32S/CR/1113	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Unshielded	Free Hanging (In-Line)	For Female Sockets	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	32
BULGIN LIMITED PXM7011/10S/CR/0507/SN	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Shielded	Free Hanging (In-Line)	For Female Sockets	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	10
BULGIN LIMITED PXM7011/32S/CR/0507	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Unshielded	Free Hanging (In-Line)	For Female Sockets	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	32
BULGIN LIMITED PXM7011/10P/CR/0911	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Unshielded	Free Hanging (In-Line)	For Male Pins	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	10
BULGIN LIMITED PXM7011/10S/CR/1113/SN	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Shielded	Free Hanging (In-Line)	For Female Sockets	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	10
BULGIN LIMITED PXM7011/32P/CR/1315	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Unshielded	Free Hanging (In-Line)	For Male Pins	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	32
BULGIN LIMITED PXM7011/32P/CR/1113/SN	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Shielded	Free Hanging (In-Line)	For Male Pins	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	32
BULGIN LIMITED PXM7011/02S/ST/0709	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Zinc Alloy	Receptacle Female Sockets	Keyed	-40 °C	120 °C		Unshielded	Free Hanging (In-Line)				Bayonet Lock	Backshell	Nickel	Metal	2	Brass	Nickel Zinc Alloy	25 A	Silver	Screw	600 V	0.276 in 0.354 in	7 mm 9 mm	Nickel
BULGIN LIMITED PXM7011/10P/CR/1113/SN	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Crimp and Solder Cup	Zinc Alloy	Receptacle Housing	Keyed	-40 °C	120 °C	Contacts Not Included	Shielded	Free Hanging (In-Line)	For Male Pins	Circular	Silver	Bayonet Lock	Backshell	Nickel	Metal	10
BULGIN LIMITED PXM7011/03P/ST/1315/SN	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Zinc Alloy	Male Pins Receptacle	Keyed	-40 °C	120 °C		Shielded	Free Hanging (In-Line)				Bayonet Lock	Backshell	Nickel	Metal		Brass	Nickel Zinc Alloy	25 A	Silver	Screw	600 V			Nickel	13 mm	15 mm	0.512 in	0.591 in	3	1	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 41.45
Newark	Each	25	$ 48.84
		50	$ 46.99

Description

General part information

PXM7011 Series

10 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
