44S30-04-1-03N

Active

Grayhill Inc.

ELECTRICALSWITCH ROTARY NOTOVER5AMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

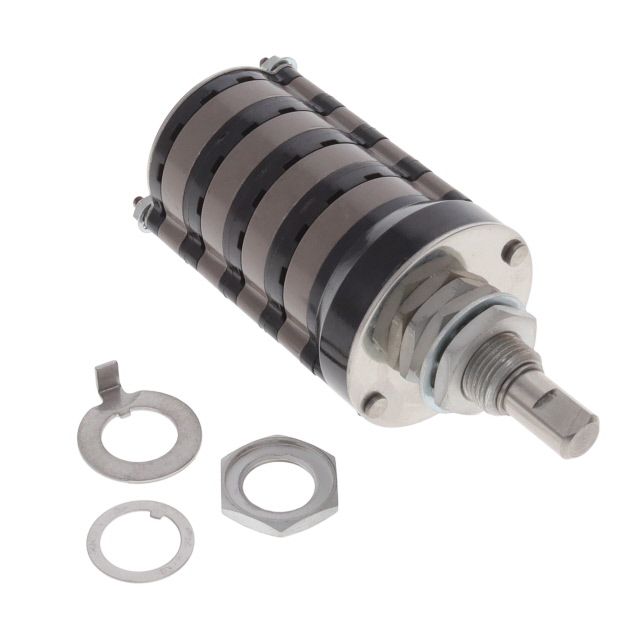

44S30-04-1-03N

Active

Grayhill Inc.

ELECTRICALSWITCH ROTARY NOTOVER5AMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	44S30-04-1-03N

Actuator Length [x]	11.1 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP3T
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Features	Shaft and Panel Sealed
Index Stops	Fixed
Number of Decks	4
Number of Poles per Deck	1
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

44S30 Series

Part	Termination Style	Number of Positions	Number of Poles per Deck	Index Stops	Number of Decks	Contact Material	Circuit per Deck	Contact Timing	Voltage Rating - AC	Actuator Length [x]	Voltage Rating - DC	Actuator Type [diameter]	Actuator Type	Features	Angle of Throw	Depth Behind Panel [z]	Number of Decks [custom]	Circuit per Deck [custom]
Grayhill Inc. 44S30-04-1-12N	Solder Lug	12	1	Continuous	4	Silver Alloy	SP12T	Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °
Grayhill Inc. 44S30-04-1-03N	Solder Lug		1	Fixed	4	Silver Alloy	SP3T	Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °
Grayhill Inc. 44S30-01-3-04N	Solder Lug	4	3	Fixed		Silver Alloy	3P4T	Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °	26.04 mm	1
Grayhill Inc. 44S30-04-2-06N	Solder Lug	6	2	Fixed	4	Silver Alloy		Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °			DP6T
Grayhill Inc. 44S30-01-1-05N	Solder Lug		1	Fixed		Silver Alloy	SP5T	Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °	26.04 mm	1
Grayhill Inc. 44S30-02-1-08N	Solder Lug	8	1	Fixed	2	Silver Alloy	SP8T	Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °	34.82 mm
Grayhill Inc. 44S30-02-2-04N	Solder Lug	4	2	Fixed	2	Silver Alloy	DP4T	Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °	34.82 mm
Grayhill Inc. 44S30-01-1-08N	Solder Lug	8	1	Fixed		Silver Alloy	SP8T	Non-Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °	26.04 mm	1
Grayhill Inc. 44S30-05-2-03S	Solder Lug		2	Fixed	5	Silver Alloy	DP3T	Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °	61.19 mm
Grayhill Inc. 44S30-02-2-05S	Solder Lug		2	Fixed	2	Silver Alloy	DP5T	Shorting	115 V	11.1 mm	28 V	6.35 mm	Flatted	Shaft and Panel Sealed	30 °	34.82 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.49
		5	$ 84.07
Newark	Each	1	$ 121.37
		100	$ 99.35
		250	$ 90.61

Description

General part information

44S30 Series

Rotary Switch 3 Position SP3T 1A (AC/DC) 115 VAC Panel Mount
