XC6192AA05ER-G

Active

Torex Semiconductor Ltd

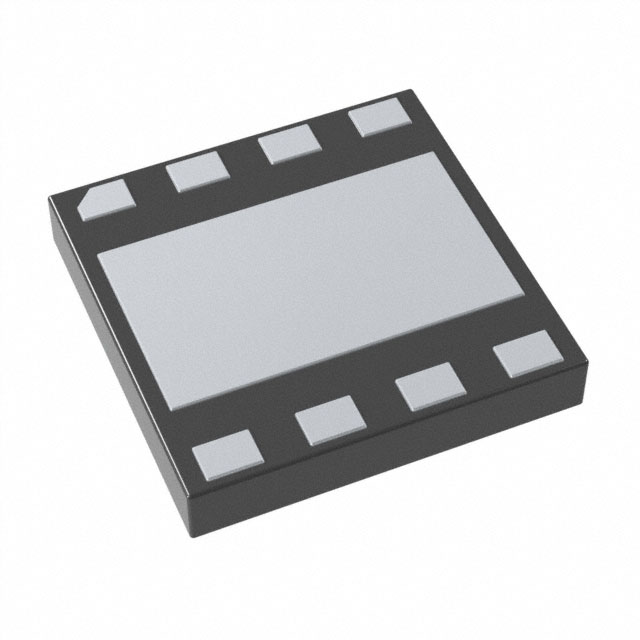

IC PWR SWTCH P-CHAN 1:1 USP-8B06

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XC6192AA05ER-G

Active

Torex Semiconductor Ltd

IC PWR SWTCH P-CHAN 1:1 USP-8B06

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC6192AA05ER-G

Current - Output (Max) [Max]	400 mA
Fault Protection	Short Circuit
Features	Power Good, Shutdown
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel
Package / Case	8-XFDFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	340 mOhm
Supplier Device Package	USP-8B06
Switch Type	General Purpose
Voltage - Load [Max]	6 V
Voltage - Load [Min]	2.5 V
Voltage - Supply (Vcc/Vdd)	False

XC6192 Series

Part	Package / Case	Number of Outputs	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]	Interface	Mounting Type	Fault Protection	Rds On (Typ)	Features	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Current - Output (Max) [Max]	Output Configuration	Switch Type	Output Type
Torex Semiconductor Ltd XC6192B503ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192A115ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192B105ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192AA10ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192B315ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192AA05ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	USP-8B06	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192A505ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192BA10ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192A103ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel
Torex Semiconductor Ltd XC6192A515ER-G	8-XFDFN Exposed Pad	1	Non-Inverting	85 °C	-40 °C	1:1	On/Off	Surface Mount	Short Circuit	340 mOhm	Power Good Shutdown	8-USP-B06 (2x2)	6 V	2.5 V	400 mA	High Side	General Purpose	P-Channel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.53
		10	$ 0.47
		25	$ 0.44
		100	$ 0.36
		250	$ 0.33
		500	$ 0.28
		1000	$ 0.25
	Digi-Reel®	1	$ 0.53
		10	$ 0.47
		25	$ 0.44
		100	$ 0.36
		250	$ 0.33
		500	$ 0.28
		1000	$ 0.25
	Tape & Reel (TR)	5000	$ 0.25

Description

General part information

XC6192 Series

Power Switch/Driver 1:1 P-Channel 400mA USP-8B06

Documents

Technical documentation and resources
