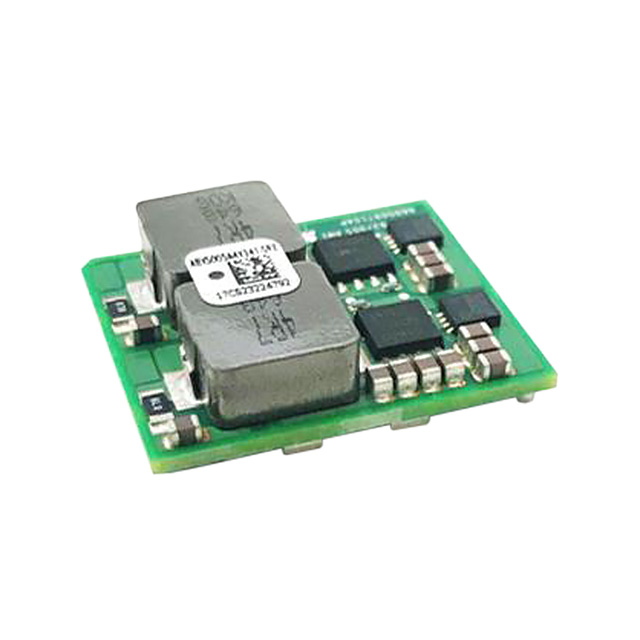

ABXS005A4X341-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 16-34V 130W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ABXS005A4X341-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 16-34V 130W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ABXS005A4X341-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 5.4 A |
| Efficiency | 95 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module |
| Power (Watts) | 130 W |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [z] | 0.33 in |
| Size / Dimension [z] | 8.5 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 [Max] | 34 V |
| Voltage - Output 1 [Min] | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 41.21 | |
| 5 | $ 40.89 | |||
| 10 | $ 40.56 | |||
| 25 | $ 39.28 | |||
| 50 | $ 37.34 | |||
| Digi-Reel® | 1 | $ 41.21 | ||
| 5 | $ 40.89 | |||
| 10 | $ 40.56 | |||
| 25 | $ 39.28 | |||
| 50 | $ 37.34 | |||
| Tape & Reel (TR) | 150 | $ 34.77 | ||
Description
General part information
ABXS005 Series
Non-Isolated PoL Module DC DC Converter 1 Output 16 ~ 34V 5.4A 8V - 16V Input
Documents
Technical documentation and resources
