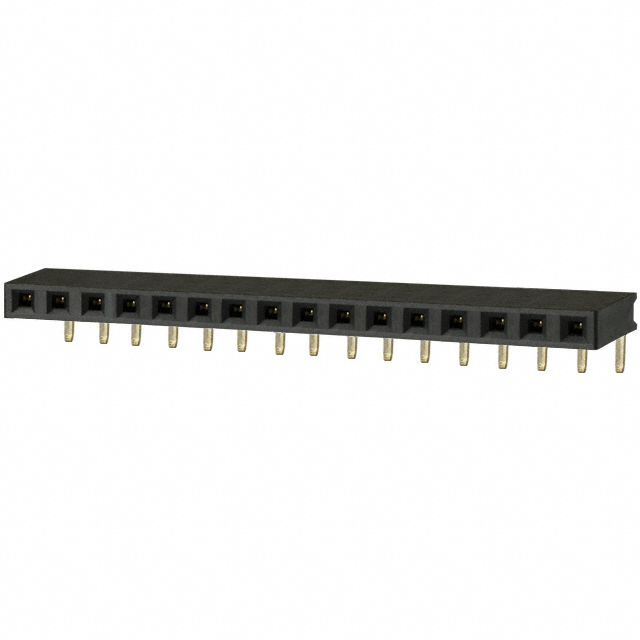

PPPC161LGBN

Obsolete

Sullins Connector Solutions

CONN HDR 16POS 0.1 GOLD PCB R/A

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 16POS 0.1 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC161LGBN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Connector Type	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Contact Material	Contact Finish Thickness - Post	Contact Shape	Insulation Color	Number of Rows	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height	Insulation Height	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type
Sullins Connector Solutions PPPC161LGBN	250 VDC	UL94 V-0	Gold	Gold	Header	Flash	Push-Pull	16	Phosphor Bronze	Flash	Square	Black	1	Through Hole Right Angle	3.15 mm	0.124 "	Polyester	0.1 in	2.54 mm	3 A	0.1 in	2.54 mm	Solder	All	-40 °C	105 ░C	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
