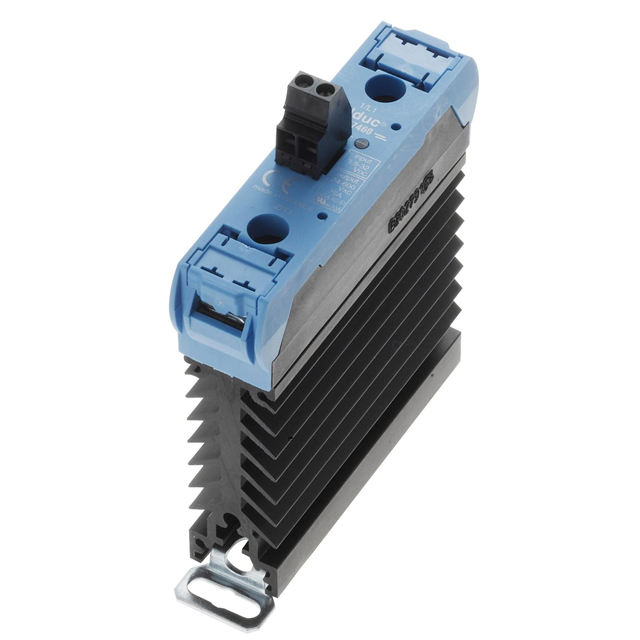

SUL963460

Active

Celduc Inc.

SSR RELAY SPST-NO 30A 24-600V

Search across all available documentation for this part.

Active

Celduc Inc.

SSR RELAY SPST-NO 30A 24-600V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Load Current	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	On-State Resistance (Max) [Max]	Termination Style
Celduc Inc. SUL963460	100 °C	-55 °C	Module	30 A	AC Zero Cross	24 V	600 V	CE cURus	Chassis Mount	3.5 V	32 V	9.5 mOhms
Celduc Inc. SUL963840-HE			SSR with Integrated Heat Sink	30 A	AC Zero Cross				Chassis Mount DIN Rail	80 VAC	140 VAC		Screw Terminal
Celduc Inc. SUL963940-HE			SSR with Integrated Heat Sink	30 A	AC Zero Cross				Chassis Mount DIN Rail	180 VAC	280 VAC/DC		Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 72.27

General part information

Solid State SPST-NO (1 Form A) Module
