45-1C36.1920.000.102

Active

EAO

EMERGENCY STOP SWITCH, SPST-NC, ON-OFF, SCREW, 10 A, 500 V, 500 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

45-1C36.1920.000.102

Active

EAO

EMERGENCY STOP SWITCH, SPST-NC, ON-OFF, SCREW, 10 A, 500 V, 500 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45-1C36.1920.000.102

Circuit	SPST-NC
Current Rating (Amps)	10 A
Ingress Protection	IP69K, IP67, IP66
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Reset Operation	Pull
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

45-1C36 Series

Part	Ingress Protection	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Reset Operation	Termination Style	Switch Function	Voltage Rating - DC	Current Rating (Amps)	Circuit	Voltage Rating - AC
EAO 45-1C36.1920.000.102	IP66 IP67 IP69K	Panel Mount Front	70 °C	-25 °C	Pull	Screw Terminal	On-Off	500 V	10 A	SPST-NC	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 91.73
		10	$ 77.97
		100	$ 64.21
Newark	Each	10	$ 83.14
		25	$ 79.23
		50	$ 75.32

Description

General part information

45-1C36 Series

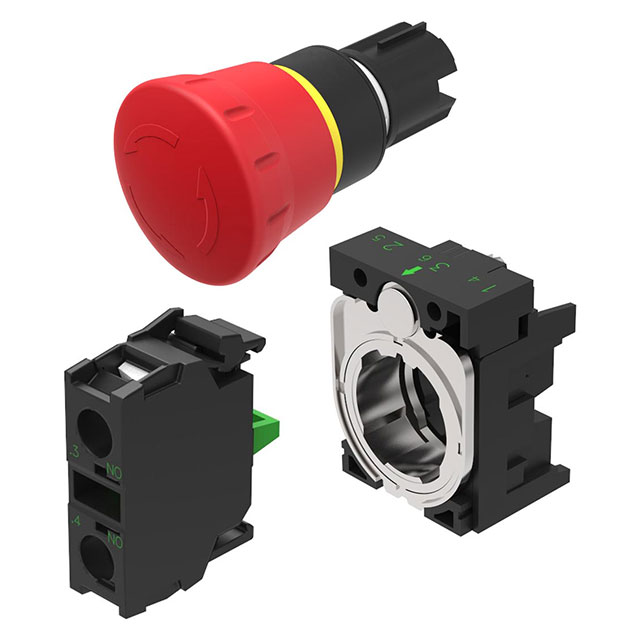

The 45-1C36.1920.000.102 from EAO is a 40mm diameter emergency stop switch. This emergency stop switch from Series 45 with forced opening contacts (in compliance with DIN EN ISO 13850 and EN 60204-1) is used primarily to ensure people’s safety. It helps to prevent damage to machinery, equipment and control systems in the event of malfunctions. It is resistant to impact, vibration and shock and has an extremely long service life makes it suitable for harsh environments.
