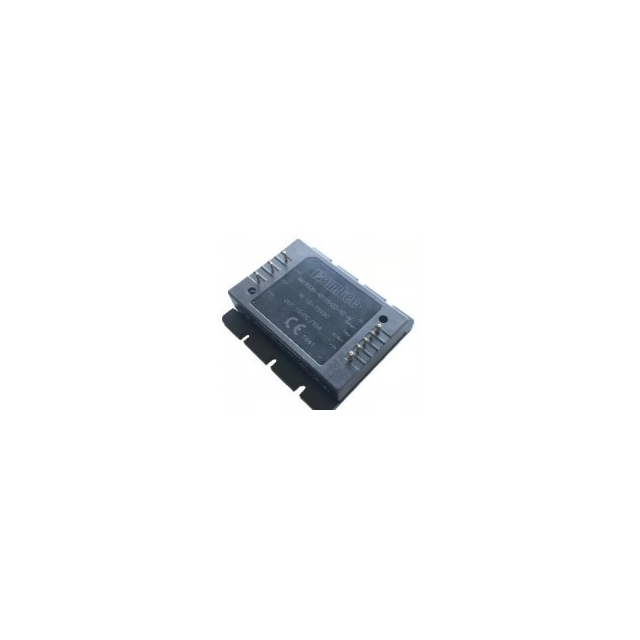

AM150QB-4815SH22-NZ-K
Activeaimtec
DC DC CONVERTER 15V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM150QB-4815SH22-NZ-K
Activeaimtec
DC DC CONVERTER 15V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM150QB-4815SH22-NZ-K |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 89 % |
| Features | Remote On/Off, Heat Sink |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 2.43 in |
| Size / Dimension [x] | 61.8 mm |
| Size / Dimension [y] | 40.2 mm |
| Size / Dimension [y] | 1.58 in |
| Size / Dimension [z] | 27.7 mm |
| Size / Dimension [z] | 1.09 " |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 167.76 | |
| 5 | $ 164.41 | |||
| 10 | $ 160.08 | |||
| 20 | $ 153.10 | |||
| 40 | $ 144.59 | |||
| 60 | $ 143.61 | |||
| 80 | $ 141.96 | |||
Description
General part information
AM150QB Series
Isolated Module DC DC Converter 1 Output 15V 10A 18V - 75V Input
