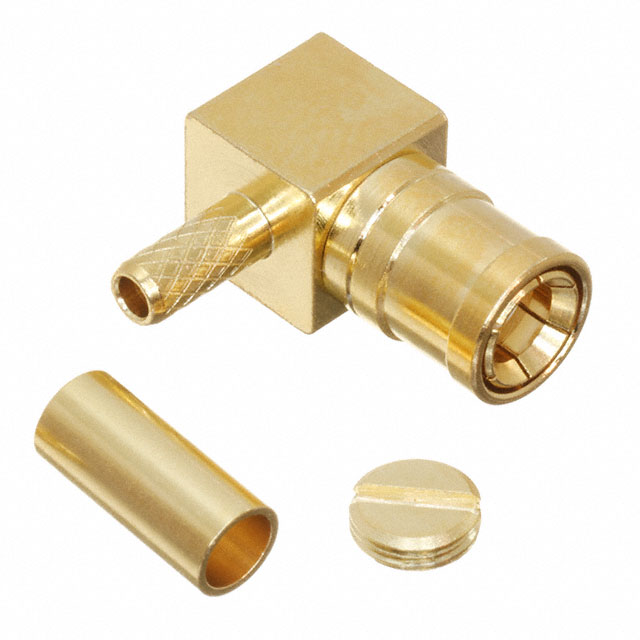

RF3-03-T-03-75-G
ActiveAdam Tech
RF SMB CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
RF3-03-T-03-75-G
ActiveAdam Tech
RF SMB CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF3-03-T-03-75-G |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-316 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Male Pin, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.51 | |
| 10 | $ 3.45 | |||
| 25 | $ 3.11 | |||
| 50 | $ 2.88 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.42 | |||
| 500 | $ 2.25 | |||
| 1000 | $ 2.10 | |||
| 2500 | $ 1.92 | |||
Description
General part information
RF3-03 Series
SMB Connector Jack, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Crimp
