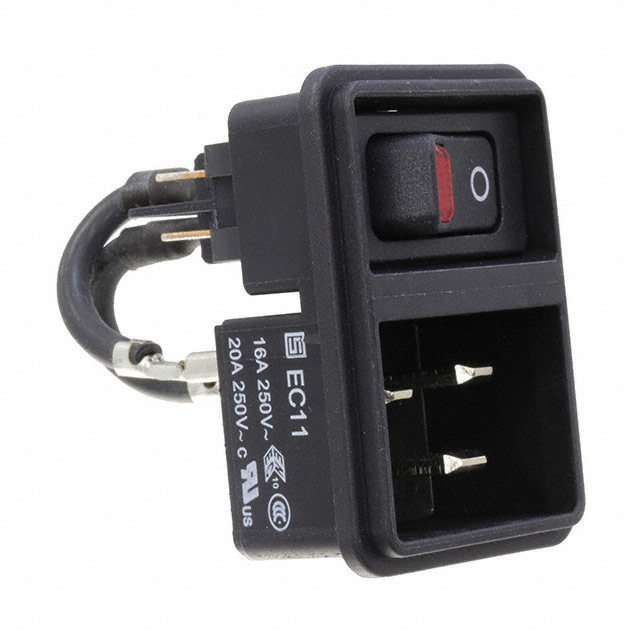

EC11.0021.201

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	EC11.0021.201

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	32.5 mm
Panel Cutout Dimensions [y]	46.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Switch Features	Illuminated, Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Panel Thickness [custom]	Panel Thickness [custom]	Ingress Protection	Voltage Rating - Appliance Inlet	Material Flammability Rating	Switch Features	Connector Type	Mounting Type	Approval Agency	Connector Style	Termination	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Features	Panel Thickness	Panel Thickness
SCHURTER Inc. EC11.0021.201	Unfiltered - Commercial	0.059 in	1.5 mm	IP40	250 VAC	UL94 V-0	Illuminated Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	cULus ENEC	IEC 320-C20	0.25 in	6.3 mm	Quick Connect	32.5 mm	46.5 mm	10 A
SCHURTER Inc. EC11.0021.001	Unfiltered - Commercial			IP40	250 VAC	UL94 V-0	Illuminated Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	cULus ENEC	IEC 320-C20	0.25 in	6.3 mm	Quick Connect	32.5 mm	46.5 mm	10 A	Front or Rear Side Mount
SCHURTER Inc. EC11.0021.301	Unfiltered - Commercial			IP40	250 VAC	UL94 V-0	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	cULus ENEC	IEC 320-C20	0.25 in	6.3 mm	Quick Connect	32.5 mm	46.5 mm	10 A		2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Snap-In
