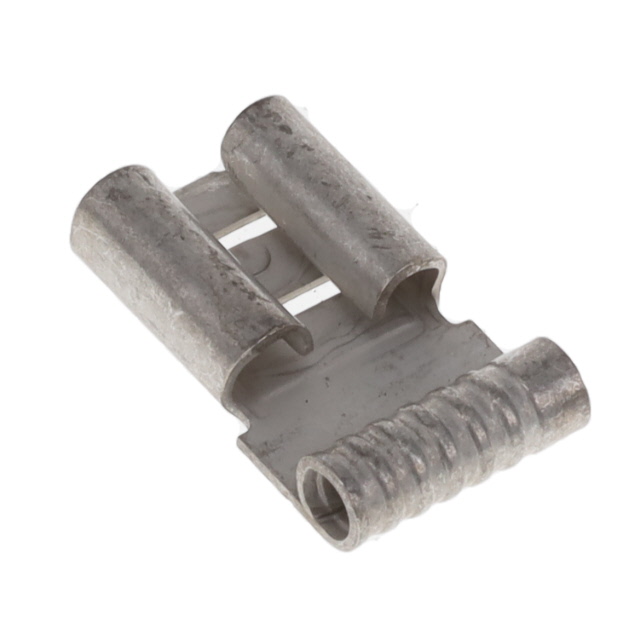

0190080007

Active

Molex

CONN QC RCPT 18-22AWG 0.250

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190080007

Active

Molex

CONN QC RCPT 18-22AWG 0.250

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190080007

Contact Finish	Electro-Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Length	7.92 mm
Tab Length	0.312 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019008 Series

Part	Gender	Tab Width	Tab Width	Terminal Type	Contact Material	Tab Length	Tab Length	Contact Finish	Insulation	Termination	Tab Thickness	Tab Thickness	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Tab Length
Molex 0190080024	Female	6.35 mm	0.25 in	Angled - 90° Flag	Brass	7.92 mm	0.312 in	Electro-Tin	Non-Insulated	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle
Molex 0190080009	Female	4.75 mm	0.187 in	Angled - 90° Flag	Brass	6.53 mm	0.257 "	Electro-Tin	Non-Insulated	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG
Molex 0190080007	Female	6.35 mm	0.25 in	Angled - 90° Flag	Brass	7.92 mm	0.312 in	Electro-Tin	Non-Insulated	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG
Molex 0190080022	Female	4.75 mm	0.187 in	Angled - 90° Flag	Brass	6.53 mm	0.257 "	Electro-Tin	Non-Insulated	Crimp	0.02 "	0.51 mm	Free Hanging (In-Line) Right Angle
Molex 0190080027	Female	6.35 mm	0.25 in	Angled - 90° Flag	Brass	7.92 mm	0.312 in	Electro-Tin	Non-Insulated	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle
Molex 0190080019	Female	4.75 mm	0.187 in	Angled - 90° Flag	Brass	6.53 mm	0.257 "	Electro-Tin	Non-Insulated	Crimp	0.02 "	0.51 mm	Free Hanging (In-Line) Right Angle
Molex 0190080020	Female	4.75 mm	0.187 in	Angled - 90° Flag	Brass	6.53 mm	0.257 "	Electro-Tin	Non-Insulated	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle
Molex 0190080039	Female	6.35 mm	0.25 in	Angled - 90° Flag	Brass		8.38 mm	Tin	Non-Insulated	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle	14 AWG	12 AWG	0.33 in
Molex 0190080001	Female	4.75 mm	0.187 in	Angled - 90° Flag	Brass	6.53 mm	0.257 "	Electro-Tin	Non-Insulated	Crimp	0.02 "	0.51 mm	Free Hanging (In-Line) Right Angle	22 AWG	17.5 AWG
Molex 0190080031	Female	6.35 mm	0.25 in	Angled - 90° Flag	Brass	7.92 mm	0.312 in	Electro-Tin	Non-Insulated	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line) Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.51
		10	$ 0.43
		100	$ 0.34
	Tape & Reel (TR)	500	$ 0.28
		1000	$ 0.26
		1500	$ 0.25
		2500	$ 0.24
		3500	$ 0.23
		5000	$ 0.23
		12500	$ 0.21
		25000	$ 0.20
		50000	$ 0.20

Description

General part information

019008 Series

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
