74AUP2G57GFX

Obsolete

Freescale Semiconductor - NXP

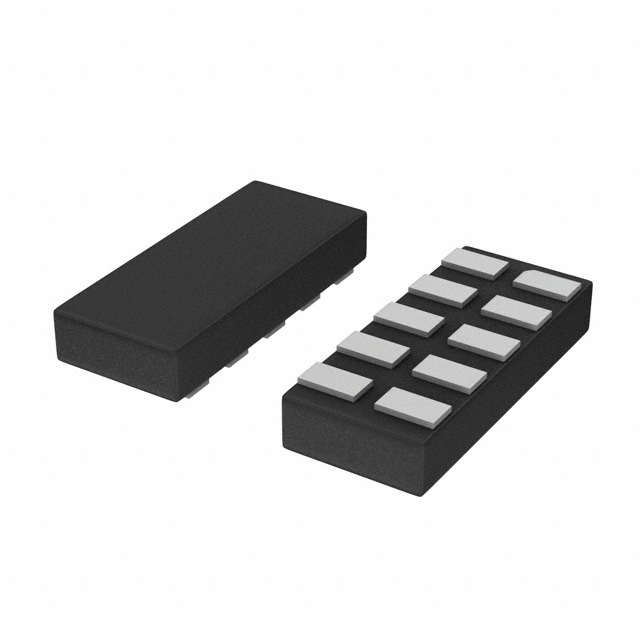

IC GATE MULTIFUNCTION DL XSON10U

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC GATE MULTIFUNCTION DL XSON10U

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP2G57GFX

Current - Output High, Low [custom]	4 mA
Current - Output High, Low [custom]	4 mA
Logic Type	Configurable Multiple Function
Mounting Type	Surface Mount
Number of Circuits	2
Number of Inputs	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Single-Ended
Package / Case	10-XFDFN
Schmitt Trigger Input	True
Supplier Device Package	10-XSON (1.7x1)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Part	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [x]	Package / Case [x]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Logic Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Inputs	Output Type	Mounting Type	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]
Freescale Semiconductor - NXP 74AUP2G57DPJ	2	125 °C	-40 °C	10-MSOP 10-TFSOP	3 mm	0.118 in	4 mA	4 mA	Configurable Multiple Function	0.8 V	3.6 V	3	Single-Ended	Surface Mount
Freescale Semiconductor - NXP 74AUP2G57GFX	2	125 °C	-40 °C	10-XFDFN			4 mA	4 mA	Configurable Multiple Function	0.8 V	3.6 V	3	Single-Ended	Surface Mount	10-XSON (1.7x1)
Freescale Semiconductor - NXP 74AUP2G57GUX	2	125 °C	-40 °C	10-XFQFN			4 mA	4 mA	Configurable Multiple Function	0.8 V	3.6 V	3	Single-Ended	Surface Mount	10-XQFN	1.8	1.4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Configurable Multiple Function Configurable 2 Circuit 3 Input 10-XSON (1.7x1)
