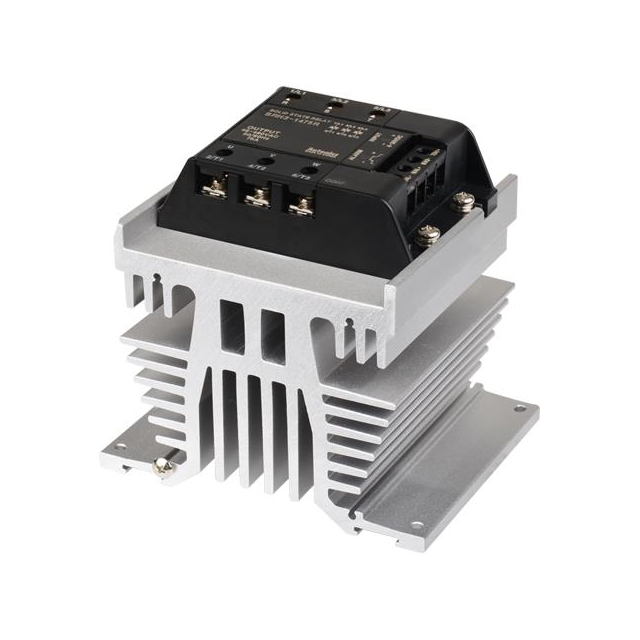

SRH3-1475R

Active

AUTONICS

SSR RELAY 3PST-NO 75A 48-480V

Search across all available documentation for this part.

Active

AUTONICS

SSR RELAY 3PST-NO 75A 48-480V

Technical Specifications

Parameters and characteristics for this part

Specification	SRH3-1475R

Circuit	3PST-NO (3 Form A)
Load Current	75 A
Mounting Type	Chassis Mount or Panel Mount
Output Type	AC
Package / Case	SSR with Integrated Heat Sink
Supplier Device Package	Module
Termination Style	Screw Terminal
Voltage - Input [Max]	30 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	480 V
Voltage - Load [Min]	48 V

Part	Package / Case	Output Type	Termination Style	Load Current	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Circuit	Supplier Device Package	Voltage - Input [Min]	Voltage - Input [Max]
AUTONICS SRH3-1475R	SSR with Integrated Heat Sink	AC	Screw Terminal	75 A	Chassis Mount or Panel Mount	48 V	480 V	3PST-NO (3 Form A)	Module	4 V	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Solid State 3PST-NO (3 Form A) SSR with Integrated Heat Sink
