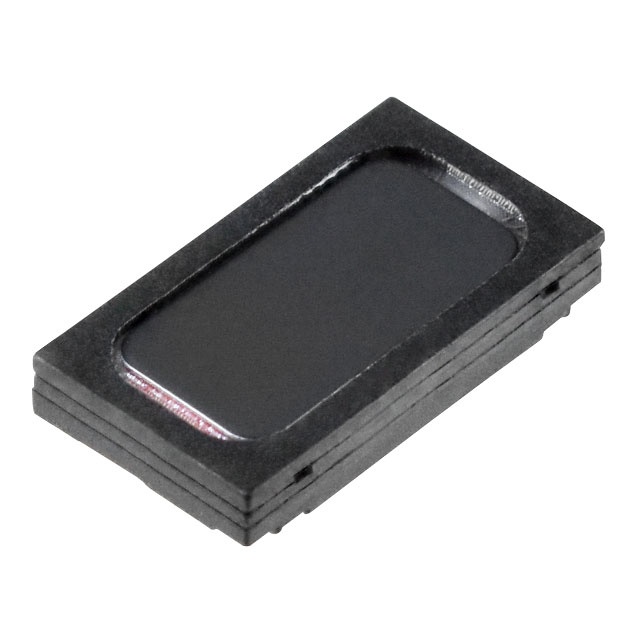

CMS-160903-16SP
ActiveCUI Devices
SPEAKER 6OHM 940MW TOP PORT 91DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMS-160903-16SP
ActiveCUI Devices
SPEAKER 6OHM 940MW TOP PORT 91DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-160903-16SP |
|---|---|
| Distortion Rating | 10 % |
| Efficiency - dBA | 91 dBA |
| Efficiency - Testing | 940 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 850 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Impedance | 6 Ohms |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.2 W |
| Power - Rated | 940 mW |
| Shape | Rectangular |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.83 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.24 | |||
| 300 | $ 1.15 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 1.02 | |||
Description
General part information
CMS-160903 Series
6 Ohms General Purpose Speaker 940 mW 500 Hz ~ 10 kHz Top Rectangular
