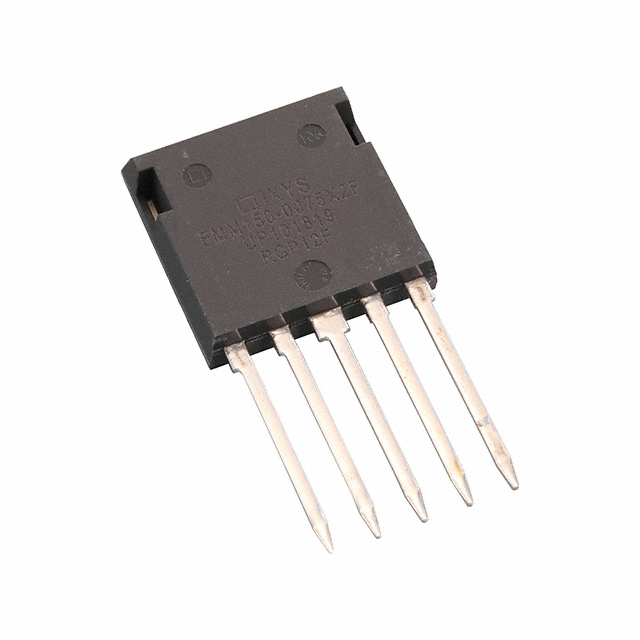

FMM150-0075X2F

Active

IXYS

MOSFET 2N-CH 75V 120A I4-PAC

Search across all available documentation for this part.

Active

IXYS

MOSFET 2N-CH 75V 120A I4-PAC

Technical Specifications

Parameters and characteristics for this part

Specification	FMM150-0075X2F

Configuration	2 N-Channel (Dual) Asymmetrical
Current - Continuous Drain (Id) @ 25°C	120 A
Drain to Source Voltage (Vdss)	75 V
Gate Charge (Qg) (Max) @ Vgs	178 nC
Input Capacitance (Ciss) (Max) @ Vds	10500 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	ISOPLUSi5-Pak™
Power - Max [Max]	170 W
Rds On (Max) @ Id, Vgs	5.8 mOhm
Supplier Device Package	ISOPLUS i4-PAC™
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	4 V

Part	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Power - Max [Max]	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Technology	Mounting Type	Configuration
IXYS FMM150-0075X2F	178 nC	75 V	170 W	10500 pF	ISOPLUS i4-PAC™	5.8 mOhm	120 A	4 V	-55 °C	175 ░C	ISOPLUSi5-Pak™	MOSFET (Metal Oxide)	Through Hole	2 N-Channel (Dual) Asymmetrical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 75V 120A 170W Through Hole ISOPLUS i4-PAC™
