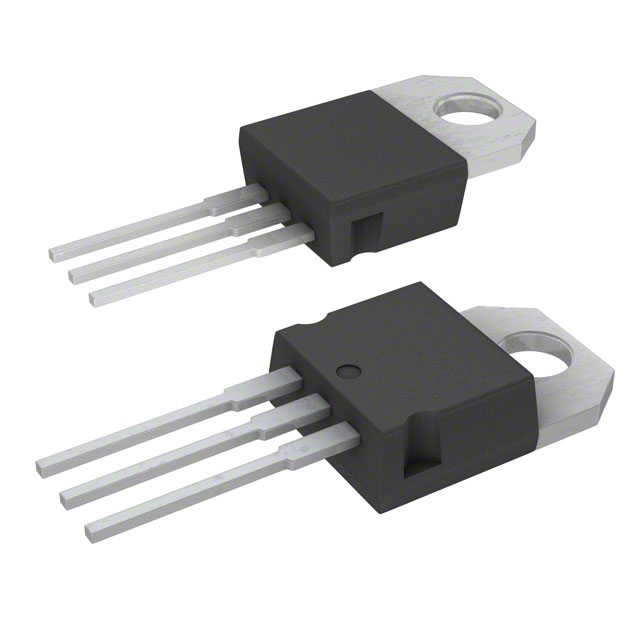

TIP33A-S

Obsolete

Bourns Inc.

TRANS NPN 60V 10A SOT93

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRANS NPN 60V 10A SOT93

Technical Specifications

Parameters and characteristics for this part

Specification	TIP33A-S

DC Current Gain (hFE) (Min) @ Ic, Vce	20
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	TO-218-3
Power - Max [Max]	3.5 W
Supplier Device Package	SOT-93
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic [Max]	4 V
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Package / Case	Supplier Device Package	Power - Max [Max]	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Operating Temperature [Max]	Operating Temperature [Min]	Transistor Type	Voltage - Collector Emitter Breakdown (Max)	Vce Saturation (Max) @ Ib, Ic [Max]
Bourns Inc. TIP33A-S	TO-218-3	SOT-93	3.5 W	Through Hole	20	150 °C	-65 °C	NPN	60 V	4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 60 V 10 A 3.5 W Through Hole SOT-93
