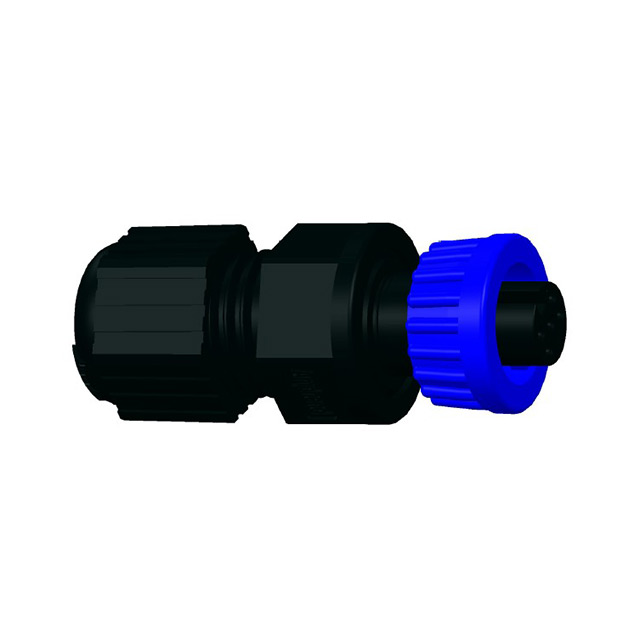

AU-05BFFA-LL7001 - AU-05BFFA-LL7001

AU-05BFFA-LL7001

Active
Amphenol LTW

CIRCULAR CONNECTOR, MINI (A) SERIES, CABLE MOUNT RECEPTACLE, 5 CONTACTS, SOLDER SOCKET, BAYONET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetManufacturer Catalogue EN+1
AU-05BFFA-LL7001 - AU-05BFFA-LL7001

AU-05BFFA-LL7001

Active
Amphenol LTW

CIRCULAR CONNECTOR, MINI (A) SERIES, CABLE MOUNT RECEPTACLE, 5 CONTACTS, SOLDER SOCKET, BAYONET

Deep-Dive with AI

DocumentsDatasheetManufacturer Catalogue EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationAU-05BFFA-LL7001
ColorBlack
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)2 A
Fastening TypeBayonet Lock
FeaturesCoupling Nut, Backshell
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialNylon, Polyamide (PA)
Mounting TypeFree Hanging (In-Line)
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
Shell Size - InsertA
ShieldingUnshielded
Voltage Rating300 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 14.41
10$ 11.08
25$ 10.02
50$ 9.30
100$ 8.65
250$ 7.88
500$ 7.36
1000$ 6.89
NewarkEach 10$ 10.76
25$ 9.78
50$ 9.17
100$ 8.81
250$ 8.04

Description

General part information

AU-05BFFA Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
