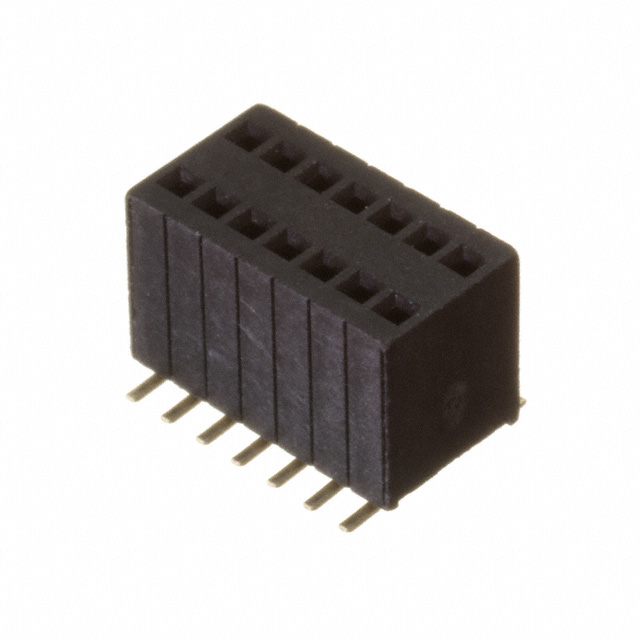

HRS-2FY-14-SG-SMT

Active

Adam Tech

RECEPTACLE STRIP, 1.27MM, VERTIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

HRS-2FY-14-SG-SMT

Active

Adam Tech

RECEPTACLE STRIP, 1.27MM, VERTIC

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HRS-2FY-14-SG-SMT

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.244 in
Insulation Height	6.2 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VAC

HRS-2FY Series

Part	Voltage Rating	Number of Rows	Mounting Type	Applications	Number of Positions	Insulation Height	Insulation Height	Termination	Number of Positions Loaded	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Material	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Material	Contact Finish - Post	Material Flammability Rating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Shape	Number of Positions
Adam Tech HRS-2FY-08-SG-SMT	250 VAC	2	Surface Mount	General Purpose	8	0.244 in	6.2 mm	Solder	All	Flash	2.54 mm	0.1 in	Female Socket	Phosphor Bronze	0.05 in	1.27 mm	Receptacle	Flash	Gold	Thermoplastic	Gold	UL94 V-0	Black	-40 °C	105 ░C	Push-Pull	Square
Adam Tech HRS-2FY-20-SG-SMT	250 VAC	2	Surface Mount	General Purpose	20	0.244 in	6.2 mm	Solder	All	Flash	2.54 mm	0.1 in	Female Socket	Phosphor Bronze	0.05 in	1.27 mm	Receptacle	Flash	Gold	Thermoplastic	Gold	UL94 V-0	Black	-40 °C	105 ░C	Push-Pull	Square
Adam Tech HRS-2FY-14-SG-SMT	250 VAC	2	Surface Mount	General Purpose	14	0.244 in	6.2 mm	Solder	All	Flash	2.54 mm	0.1 in	Female Socket	Phosphor Bronze	0.05 in	1.27 mm	Receptacle	Flash	Gold	Thermoplastic	Gold	UL94 V-0	Black	-40 °C	105 ░C	Push-Pull	Square
Adam Tech HRS-2FY-10-SG-SMT	250 VAC	2	Surface Mount	General Purpose	10	0.244 in	6.2 mm	Solder	All	Flash	2.54 mm	0.1 in	Female Socket	Phosphor Bronze	0.05 in	1.27 mm	Receptacle	Flash	Gold	Thermoplastic	Gold	UL94 V-0	Black	-40 °C	105 ░C	Push-Pull	Square
Adam Tech HRS-2FY-16-SG-SMT	250 VAC	2	Surface Mount	General Purpose		0.244 in	6.2 mm	Solder	All	Flash	2.54 mm	0.1 in	Female Socket	Phosphor Bronze	0.05 in	1.27 mm	Receptacle	Flash	Gold	Thermoplastic	Gold	UL94 V-0	Black	-40 °C	105 ░C	Push-Pull	Square	16
Adam Tech HRS-2FY-04-SG-SMT	250 VAC	2	Surface Mount	General Purpose	4	0.244 in	6.2 mm	Solder	All	Flash	2.54 mm	0.1 in	Female Socket	Phosphor Bronze	0.05 in	1.27 mm	Receptacle	Flash	Gold	Thermoplastic	Gold	UL94 V-0	Black	-40 °C	105 ░C	Push-Pull	Square
Adam Tech HRS-2FY-06-SG-SMT	250 VAC	2	Surface Mount	General Purpose	6	0.244 in	6.2 mm	Solder	All	Flash	2.54 mm	0.1 in	Female Socket	Phosphor Bronze	0.05 in	1.27 mm	Receptacle	Flash	Gold	Thermoplastic	Gold	UL94 V-0	Black	-40 °C	105 ░C	Push-Pull	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.83
		10	$ 0.63
		100	$ 0.48
		500	$ 0.40
		1000	$ 0.38
		5000	$ 0.32
		10000	$ 0.30
