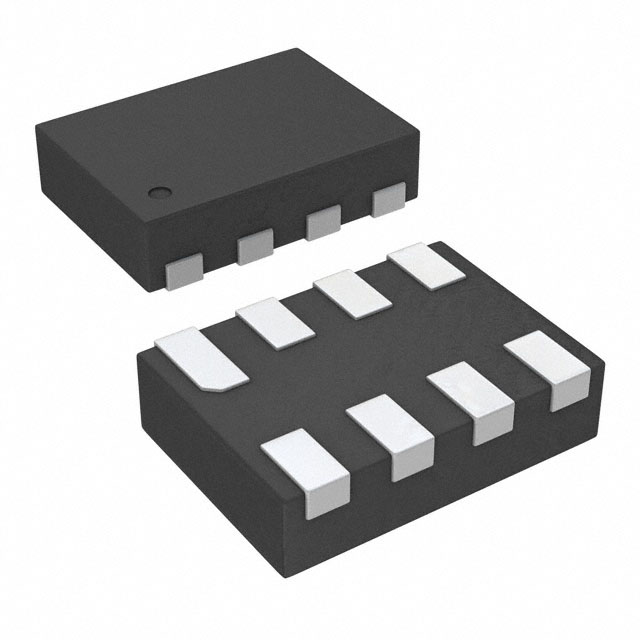

RT5784BGQWF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 2A 8WDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT5784BGQWF
ActiveRichtek USA Inc.
IC REG BUCK ADJ 2A 8WDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT5784BGQWF |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching | 1.5 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 8-WFDFN |
| Supplier Device Package | 8-WDFN (2x1.5) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.86 | |
| Digi-Reel® | 1 | $ 1.86 | ||
| Tape & Reel (TR) | 2500 | $ 0.54 | ||
| 5000 | $ 0.51 | |||
| 7500 | $ 0.49 | |||
| 12500 | $ 0.48 | |||
| 17500 | $ 0.46 | |||
Description
General part information
RT5784 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 8-WFDFN
