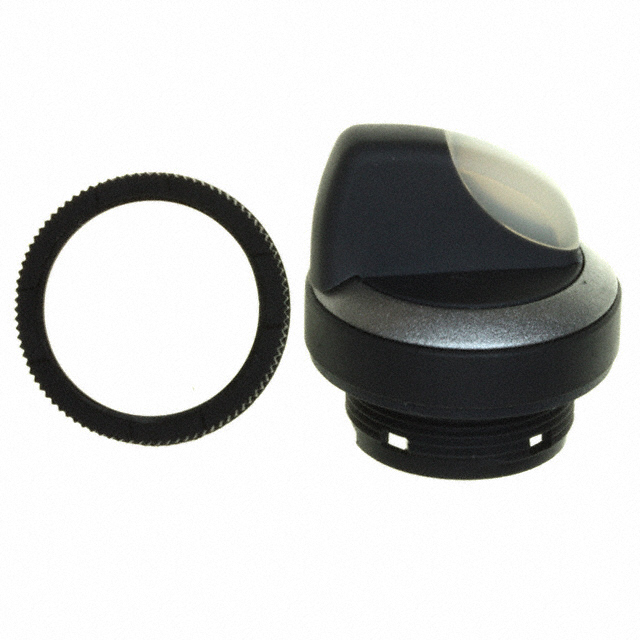

1.30252.1022200

Obsolete

RAFI USA

CONFIG SW BODY SELECTOR ILLUM

Search across all available documentation for this part.

Obsolete

RAFI USA

CONFIG SW BODY SELECTOR ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30252.1022200

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Actuator Type	Selector
Illumination	Illuminated - White
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Panel Cutout Dimensions	Actuator Type	Requires	Illumination	(Select First, Then Apply Filters) Compatible Series	Type
RAFI USA 1.30252.1022200	22.3 mm	Selector	Contact Block(s) Illumination Source	Illuminated - White	Rafix 22 FS	Maintained
RAFI USA 1.30252.0012208	22.3 mm	Selector	Contact Block(s) Illumination Source	Illuminated - White	Rafix 22 FS	Momentary
RAFI USA 1.30252.8010208	22.3 mm	Selector	Contact Block(s)	Non-Illuminated	Rafix 22 FS	Maintained
RAFI USA 1.30252.7010208	22.3 mm	Selector	Contact Block(s)	Non-Illuminated	Rafix 22 FS	Maintained

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Configurable Switch Body Selector Illuminated - White

Technical documentation and resources
