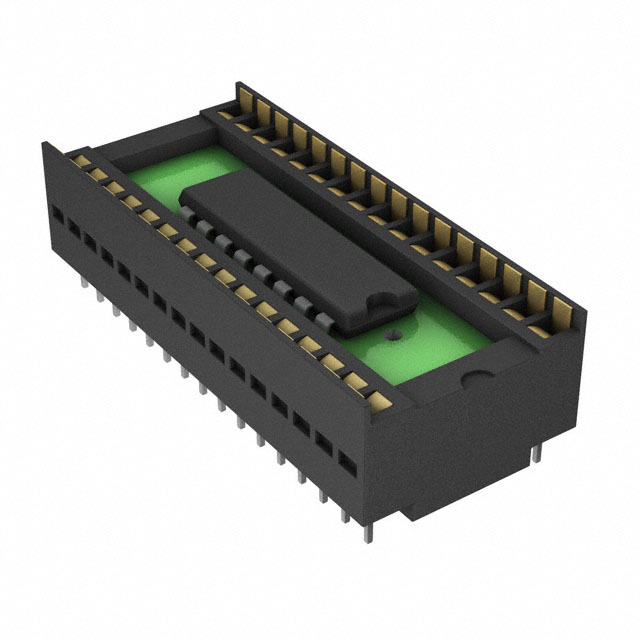

DS1216F

Obsolete

Analog Devices Inc./Maxim Integrated

IC SMART/ROM 3V 64/256/1M 32DIP

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC SMART/ROM 3V 64/256/1M 32DIP

Technical Specifications

Parameters and characteristics for this part

Part	Controller Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case	Package / Case [custom]	Package / Case [custom]	Mounting Type	Operating Temperature [Max]	Package / Case	Package / Case
Analog Devices Inc./Maxim Integrated DS1216D	Smartwatch RAM	4.5 V	5.5 V	32-DIP Socket	32-DIP Socket	0.6 in	15.24 mm	Through Hole	70 °C
Analog Devices Inc./Maxim Integrated DS1216C	Smartwatch RAM	4.5 V	5.5 V	28-DIP Socket	28-DIP Socket			Through Hole	70 °C	15.24 mm	0.6 in
Analog Devices Inc./Maxim Integrated DS1216F	Smartwatch ROM	4.5 V	5.5 V	32-DIP Socket	32-DIP Socket	0.6 in	15.24 mm	Through Hole	70 °C
Analog Devices Inc./Maxim Integrated DS1216E	Smartwatch ROM	4.5 V	5.5 V	28-DIP Socket	28-DIP Socket			Through Hole	70 °C	15.24 mm	0.6 in
Analog Devices Inc./Maxim Integrated DS1216H	Smartwatch RAM	4.5 V	5.5 V	32-DIP Socket	32-DIP Socket	0.6 in	15.24 mm	Through Hole	70 °C
Analog Devices Inc./Maxim Integrated DS1216B	Smartwatch RAM	4.5 V	5.5 V	28-DIP Socket	28-DIP Socket			Through Hole	70 °C	15.24 mm	0.6 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC SMART/ROM 3V 64/256/1M 32DIP

Technical documentation and resources

No documents available
