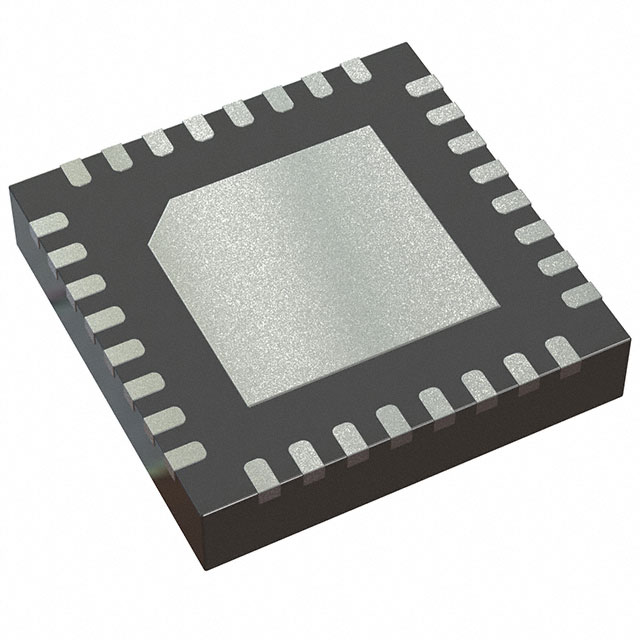

78Q2133SR/F

Analog Devices Inc./Maxim Integrated

IC TRANSCEIVER FULL 1/1 32TQFN

Search across all available documentation for this part.

Analog Devices Inc./Maxim Integrated

IC TRANSCEIVER FULL 1/1 32TQFN

Technical Specifications

Parameters and characteristics for this part

Part	Function	Type	Utilized IC / Part	Supplied Contents	Receiver Hysteresis	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Duplex	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Mounting Type	Voltage - Supply
Analog Devices Inc./Maxim Integrated 78Q2133-DB	Ethernet PHY	Interface	78Q2133	Board(s)
Analog Devices Inc./Maxim Integrated 78Q2133/F		Transceiver			125 mV	85 °C	-40 °C	IEEE 802.3	32-VFQFN Exposed Pad	3.6 V	3 V	32-QFN-EP (5x5)	Full	4	4	Surface Mount
Analog Devices Inc./Maxim Integrated 78Q2133SR/F		Transceiver				85 °C	-40 °C	Ethernet				32-TQFN (5x5)	Full			Surface Mount	3.3 V
Analog Devices Inc./Maxim Integrated 78Q2133R/F		Transceiver			125 mV	85 °C	-40 °C	IEEE 802.3		3.6 V	3 V	32-TQFN (5x5)	Full	4	4	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/1 Transceiver Full Ethernet 32-TQFN (5x5)

Technical documentation and resources

No documents available
