TG-A2200-300-150-2.0

Obsolete

t-Global Technology

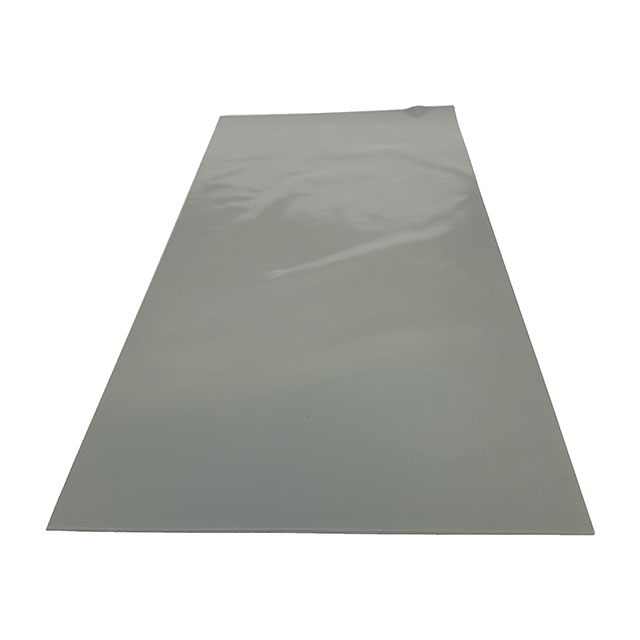

THERM PAD 300MMX150MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Thermal Pad Tolerance

TG-A2200-300-150-2.0

Obsolete

t-Global Technology

THERM PAD 300MMX150MM GRAY

Deep-Dive with AI

DocumentsDatasheet Thermal Pad Tolerance

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TG-A2200-300-150-2.0

Adhesive	Tacky - One Side
Color	Gray
Material	Silicone
Outline [x]	300 mm
Outline [y]	150 mm
Shape	Rectangular
Shelf Life	24 Months
Thermal Conductivity	2.2 W/m-K
Thickness	0.079 in
Thickness	2 mm
Type	Gap Filler Pad, Sheet
Usage	Multi

TG-A2200 Series

Part	Shape	Shelf Life	Adhesive	Outline [y]	Outline [x]	Thermal Conductivity	Usage	Material	Type	Thickness	Thickness	Color
t-Global Technology TG-A2200-20-10-2.0	Rectangular	24 Months	Tacky - One Side	10 mm	20 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.079 in	2 mm	Gray
t-Global Technology TG-A2200-45-45-1.5	Square	24 Months	Tacky - One Side	45 mm	45 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.0591 "	1.5 mm	Gray
t-Global Technology TG-A2200-19.50-12.70-1.0	Rectangular	24 Months	Tacky - One Side	12.7 mm	19.5 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.0394 in	1 mm	Gray
t-Global Technology TG-A2200-20-10-1.0	Rectangular	24 Months	Tacky - One Side	10 mm	20 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.0394 in	1 mm	Gray
t-Global Technology TG-A2200-19.50-12.70-0.5	Rectangular	24 Months	Tacky - One Side	12.7 mm	19.5 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.0197 in	0.5 mm	Gray
t-Global Technology TG-A2200-24-21.01-2.0	Rectangular	24 Months	Tacky - One Side	21.01 mm	24 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.079 in	2 mm	Gray
t-Global Technology TG-A2200-300-150-2.0	Rectangular	24 Months	Tacky - One Side	150 mm	300 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.079 in	2 mm	Gray
t-Global Technology TG-A2200-300-150-1.0	Rectangular	24 Months	Tacky - One Side	150 mm	300 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.0394 in	1 mm	Gray
t-Global Technology TG-A2200-100-70-1.5	Rectangular	24 Months	Tacky - One Side	70 mm	100 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.0591 "	1.5 mm	Gray
t-Global Technology TG-A2200-25-25-1.5	Square	24 Months	Tacky - One Side	25 mm	25 mm	2.2 W/m-K	Multi	Silicone	Gap Filler Pad Sheet	0.0591 "	1.5 mm	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
