C09111D0040014U

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C09111D0040014U

Connector Type	Plug Housing
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-4
Shielding	Shielded
Type	For Female Sockets

Part	Material Flammability Rating	Orientation	Ingress Protection	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions	Connector Type	Mounting Type	Type	Shell Material	Insert Material	Shell Finish	Shell Size - Insert	Housing Color	Note
Amphenol Tuchel Industrial C09111D0040014U	UL94 V-0	Keyed	IP68 IP69K	Shielded	100 °C	-40 °C	Crimp	4	Plug Housing	Free Hanging (In-Line)	For Female Sockets	Zinc Die Cast	Thermoplastic	Nickel	M16-4	Silver	Contacts Not Included
Amphenol Tuchel Industrial C09111D0080024U	UL94 V-0	Keyed	IP68 IP69K	Shielded	100 °C	-40 °C	Crimp	8	Plug Housing	Free Hanging (In-Line)	For Female Sockets	Zinc Die Cast	Thermoplastic	Nickel	M16-8	Silver	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

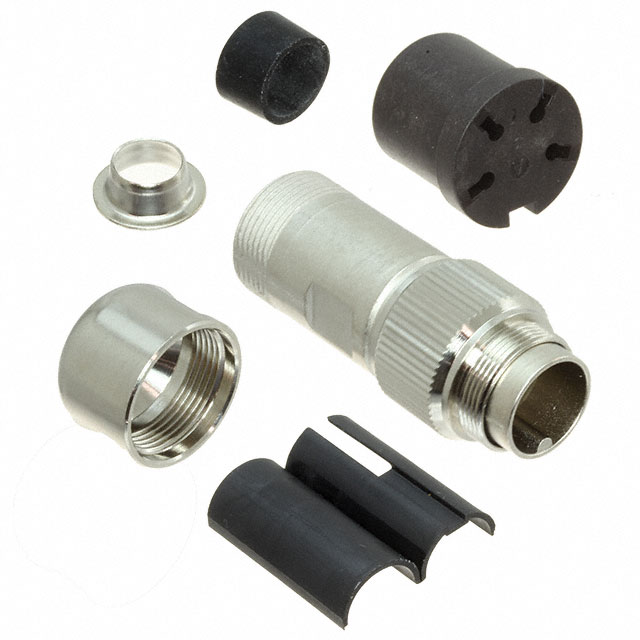

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, Strain Relief
