OSTTE021161

Active

On Shore Technology Inc.

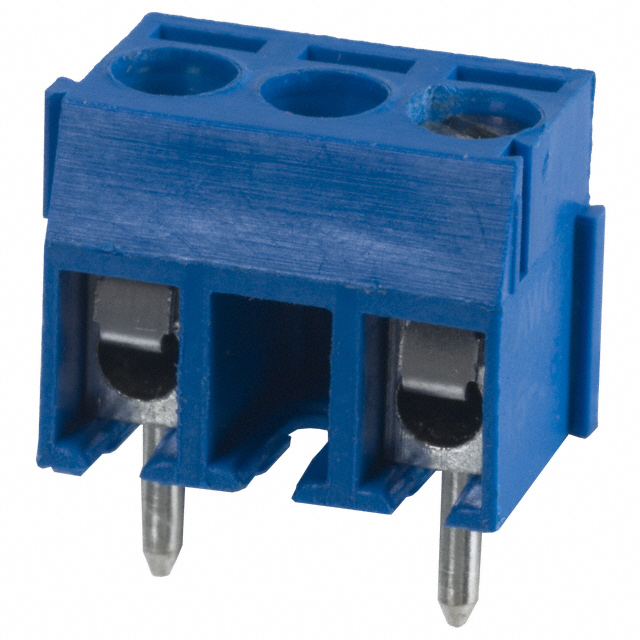

TERM BLK 2POS SIDE ENTRY 7MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

OSTTE021161

Active

On Shore Technology Inc.

TERM BLK 2POS SIDE ENTRY 7MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTTE021161

Clamp Material - Plating	Stainless, Steel
Contact Material - Plating [custom]	Brass
Current	10 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-33 °C
Positions Per Level	2
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Screw Thread	M2
Torque - Screw	0.15 Nm
Torque - Screw	1.3 Lb-In
Voltage	125 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screw

OSTTE02 Series

Part	Mating Orientation	Positions Per Level	Torque - Screw	Torque - Screw	Clamp Material - Plating	Current	Mounting Type	Voltage	Wire Termination	Housing Material	Screw Thread	Features	Wire Gauge [Max]	Wire Gauge [Min]	Screw Material - Plating	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Pitch [x]	Pitch [x]	Color
On Shore Technology Inc. OSTTE021161	Horizontal with Board	2	0.15 Nm	1.3 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw	Polyamide (PA) Nylon	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Galvanized - Chromate Plated	1	-33 °C	120 °C	Brass
On Shore Technology Inc. OSTTE020164	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard	Thermoplastic	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-40 °C	115 °C		Tin Plated	3.5 mm	0.138 in	Blue
On Shore Technology Inc. OSTTE021104	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard		M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-40 °C	115 °C		Brass - Tin Plated
On Shore Technology Inc. OSTTE020104	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard	Thermoplastic	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-40 °C	115 °C		Tin Plated	3.5 mm	0.138 in	Black
On Shore Technology Inc. OSTTE020161	Horizontal with Board	2	0.2 Nm	1.7 Lb-In	Stainless Steel	10 A	Through Hole	125 V	Screw - Leaf Spring Wire Guard	Thermoplastic	M2	Interlocking (Side)	26 AWG	16 AWG	Steel Zinc Plated	1	-30 ░C	105 ░C		Brass - Tin Plated	3.5 mm	0.138 in	Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	212	$ 0.39

Description

General part information

OSTTE02 Series

2 Position Wire to Board Terminal Block Horizontal with Board 0.276" (7.00mm) Through Hole

Documents

Technical documentation and resources

No documents available
