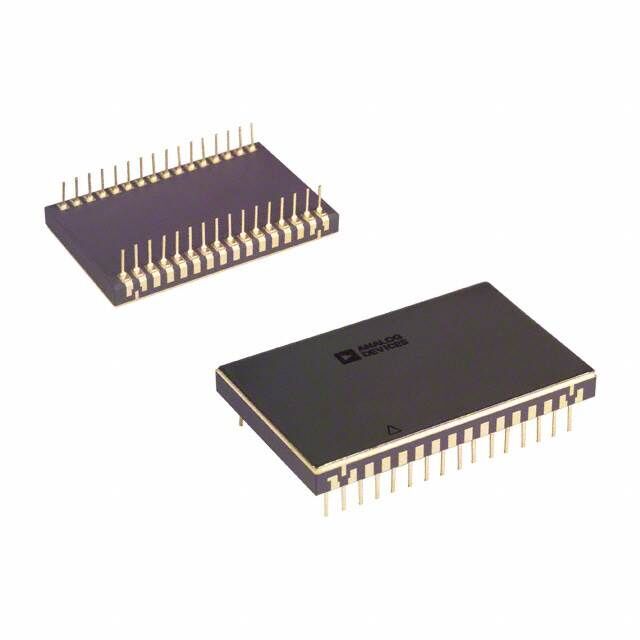

AD1139K
ObsoleteAnalog Devices
IC DAC 18BIT A-OUT 32BBDIP-H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD1139K
ObsoleteAnalog Devices
IC DAC 18BIT A-OUT 32BBDIP-H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AD1139K |
|---|---|
| Data Interface | Parallel |
| Differential Output | False |
| INL/DNL (LSB) | ±0.5 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Type | Current - Unbuffered |
| Package / Case | 32-CDIP |
| Package / Case | 23.12 mm |
| Package / Case | 0.91 in |
| Reference Type | Internal |
| Supplier Device Package | 32-BBDIP-H |
| Voltage - Supply, Analog | 15 V, 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AD1139 Series
18 Bit Digital to Analog Converter 1 32-BBDIP-H
