TM40-0176-00
ActiveCarlisleIT

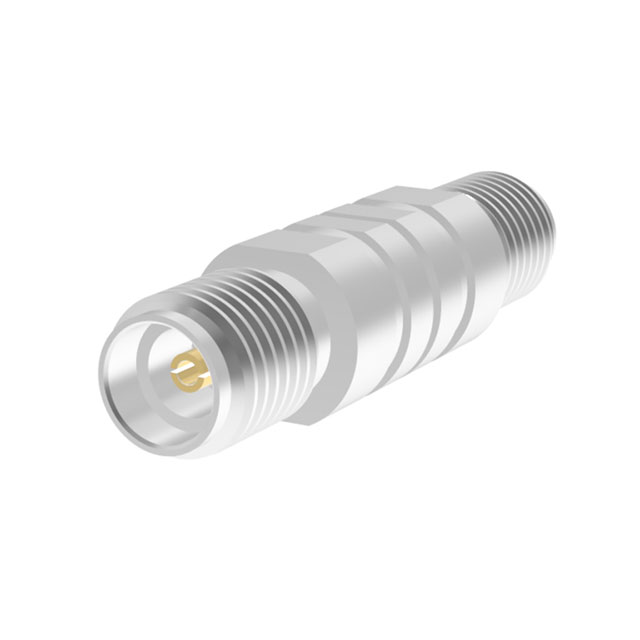

INNER DC BLOCK, 3.5(F) TO 3.5(F)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM40-0176-00
ActiveCarlisleIT
INNER DC BLOCK, 3.5(F) TO 3.5(F)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM40-0176-00 |
|---|---|
| Adapter Series [Max] | 3.5 mm |
| Adapter Series [Min] | 3.5 mm |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 3.5mm Jack, Female Socket |
| Convert To (Adapter End) | 3.5mm Jack, Female Socket |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 50.52 | |
Description
General part information
TM40-0176 Series
Adapter Coaxial Connector 3.5mm Jack, Female Socket To 3.5mm Jack, Female Socket 50 Ohms
