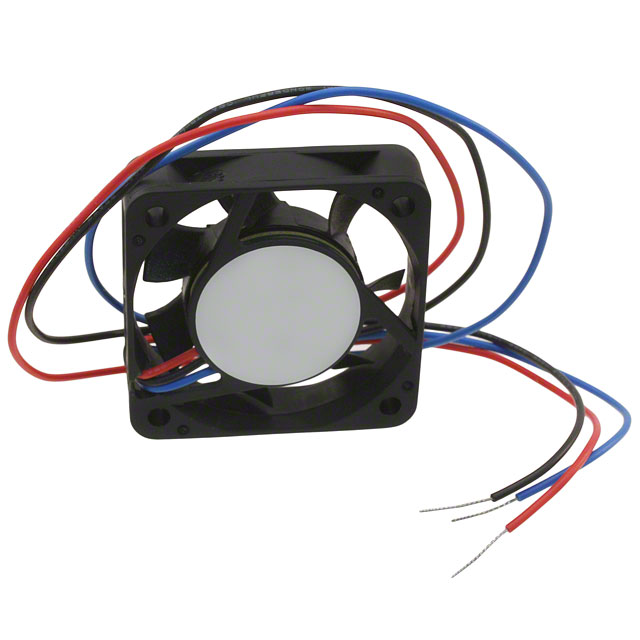

EFB0405HHA-F00
ObsoleteDelta Electronics
FAN AXIAL 40X10MM BALL 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
EFB0405HHA-F00
ObsoleteDelta Electronics
FAN AXIAL 40X10MM BALL 5VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFB0405HHA-F00 |
|---|---|
| Air Flow | 8.1 CFM |
| Air Flow | 0.227 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.19 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 33 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| RPM | 7000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 0.174 in H2O |
| Static Pressure | 43.3 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 5.5 V |
| Voltage Range [Min] | 4.5 V |
| Weight | 0.032 lb |
| Weight | 14.51 g |
| Width [y] | 10 mm |
EFB0405 Series
| Part | RPM | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Lifetime @ Temp. | Approval Agency | Bearing Type | Static Pressure | Static Pressure | Voltage Range [Min] | Voltage Range [Max] | Weight | Weight | Noise | Termination | Material - Frame | Material - Blade | Width [y] | Air Flow | Air Flow | Voltage - Rated | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Fan Type | Power (Watts) | Features | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 4000 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 14.2 Pa | 0.057 in H2O | 4.5 V | 5.5 V | 0.032 lb | 14.51 g | 20.5 dB(A) | 2 Wire Leads | Plastic | Plastic | 10 mm | 0.104 m³/min | 3.7 CFM | 5 V | 70 mA | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 350 mW | ||
Delta Electronics | 7600 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 75.5 Pa | 0.303 in H2O | 4.5 V | 5.5 V | 0.073 lb | 33.11 g | 28.5 dB(A) | 3 Wire Leads | Plastic | Plastic | 20 mm | 0.238 mł/min | 8.5 CFM | 5 V | 0.25 A | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 1.25 W | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | 6300 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 54.3 Pa | 0.218 in H2O | 4.5 V | 5.5 V | 0.073 lb | 33.11 g | 24 dB | 2 Wire Leads | Plastic | Plastic | 20 mm | 0.202 mł/min | 7.2 CFM | 5 V | 150 mA | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 0.75 W | ||
Delta Electronics | 7000 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 43.3 Pa | 0.174 in H2O | 4.5 V | 5.5 V | 0.032 lb | 14.51 g | 33 dB(A) | 3 Wire Leads | Plastic | Plastic | 10 mm | 0.227 m³/min | 8.1 CFM | 5 V | 0.19 A | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | Locked Rotor Protection Speed Sensor (Tach) | ||
Delta Electronics | 5000 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 33.9 Pa | 0.136 in H2O | 4.5 V | 5.5 V | 0.073 lb | 33.11 g | 22 dB(A) | 3 Wire Leads | Plastic | Plastic | 20 mm | 5.5 CFM | 5 V | 100 mA | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 0.5 W | Locked Rotor Sensor | 0.154 m³/min | |
Delta Electronics | 9000 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 103.6 Pa | 0.416 in H2O | 4.5 V | 5.5 V | 0.073 lb | 33.11 g | 32.5 dB | 2 Wire Leads | Plastic | Plastic | 20 mm | 0.283 m³/min | 10.1 CFM | 5 V | 320 mA | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 1.6 W | ||
Delta Electronics | 5000 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 21.9 Pa | 0.088 in H2O | 4.5 V | 5.5 V | 0.032 lb | 14.51 g | 24.5 dB(A) | 2 Wire Leads | Plastic | Plastic | 10 mm | 0.165 m³/min | 5.9 CFM | 5 V | 100 mA | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 0.5 W | ||
Delta Electronics | 6300 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 54.3 Pa | 0.218 in H2O | 4.5 V | 5.5 V | 0.073 lb | 33.11 g | 24 dB | 2 Wire Leads | Plastic | Plastic | 20 mm | 0.202 mł/min | 7.2 CFM | 5 V | 150 mA | Tubeaxial | 0.75 W | ||||||
Delta Electronics | 5000 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 33.9 Pa | 0.136 in H2O | 4.5 V | 5.5 V | 0.073 lb | 33.11 g | 22 dB(A) | 2 Wire Leads | Plastic | Plastic | 20 mm | 5.5 CFM | 5 V | 100 mA | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 0.5 W | 0.154 m³/min | ||
Delta Electronics | 7600 RPM | 40 mm | Square | 40 mm | 70000 Hrs | CE CSA UL VDE | Ball | 75.5 Pa | 0.303 in H2O | 4.5 V | 5.5 V | 0.073 lb | 33.11 g | 28.5 dB(A) | 2 Wire Leads | Plastic | Plastic | 20 mm | 0.238 mł/min | 8.5 CFM | 5 V | 0.25 A | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 1.25 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EFB0405 Series
Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 8.1 CFM (0.227m³/min) 3 Wire Leads
