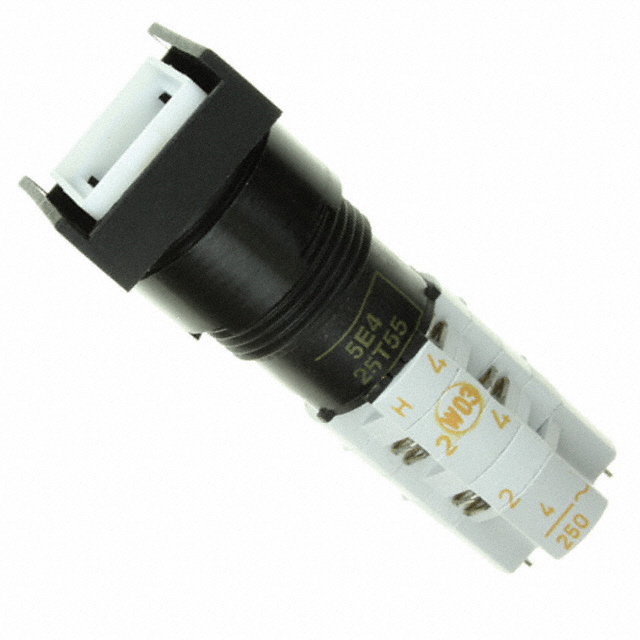

1.15.108.252/0000

Active

RAFI USA

SWITCH PUSH 4PST 4A 250V

Deep-Dive with AI

Search across all available documentation for this part.

1.15.108.252/0000

Active

RAFI USA

SWITCH PUSH 4PST 4A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1.15.108.252/0000

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	4PST-2NO/2NC
Current Rating (Amps)	4 A, 200 mA
Ingress Protection	IP40
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	230 V

1.15108 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Voltage Rating - AC	Electrical Life	Ingress Protection	Switch Function	Type	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC	Actuator Marking	Actuator Type	Current Rating (Amps)	Key Removable Positions	Contact Material	Contact Timing	Features	Number of Positions	Angle of Throw
RAFI USA 1.15.108.177/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V	50000 Cycles	IP65 - Dust Tight Water Resistant	Off-On On-Off	Illuminated Standard	16.2 mm	4PST-2NO/2NC	230 V	No Marking	Rectangular Button	4 A 200 mA
RAFI USA 1.15.108.552/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V		IP40	Off-On On-Off	Illuminated Standard	16.2 mm	4PST-2NO/2NC	230 V	No Marking	Button Round	4 A 200 mA
RAFI USA 1.15.108.252/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V		IP40	Off-Mom On-Mom	Illuminated Standard	16.2 mm	4PST-2NO/2NC	230 V	No Marking	Button Square	4 A 200 mA
RAFI USA 1.15.108.377/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V		IP65 - Dust Tight Water Resistant	Off-On On-Off	Illuminated Standard	16.2 mm	4PST-2NO/2NC	230 V	No Marking		4 A 200 mA
RAFI USA 1.15.108.977/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V	50000 Cycles	IP65 - Dust Tight Water Resistant	Off-On On-Off	Illuminated Standard	16.2 mm	4PST-2NO/2NC	230 V	No Marking	Button Round	4 A 200 mA
RAFI USA 1.15.108.976/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V		IP65 - Dust Tight Water Resistant	Off-On On-Off	Illuminated Standard	16.2 mm	DPST-NO/NC	230 V	No Marking	Button Round	4 A 200 mA
RAFI USA 1.15.108.152/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V		IP40	Off-On On-Off	Illuminated Standard	16.2 mm	4PST-2NO/2NC	230 V	No Marking	Rectangular Button	4 A 200 mA
RAFI USA 1.15.108.911/0000	70 °C	-25 °C	Solder Lug		250 V			Off-On On-Off		16.2 mm	DPST-NO/NC	230 V		Flat Key	4 A 200 mA	All	Silver (Ag)	Not Specified	IP40	2	90 °
RAFI USA 1.15.108.35/10000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V		IP40	Off-On On-Off	Illuminated Standard	16.2 mm	DPST-NO/NC	230 V	No Marking	Button Square	4 A 200 mA
RAFI USA 1.15.108.251/0000	70 °C	-25 °C	Solder Lug	Panel Mount Front	250 V		IP40	Off-Mom On-Mom	Illuminated Standard	16.2 mm	DPST-NO/NC	230 V	No Marking	Button Square	4 A 200 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 33.75

Description

General part information

1.15108 Series

Pushbutton Switch 4PST-2NO/2NC Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
