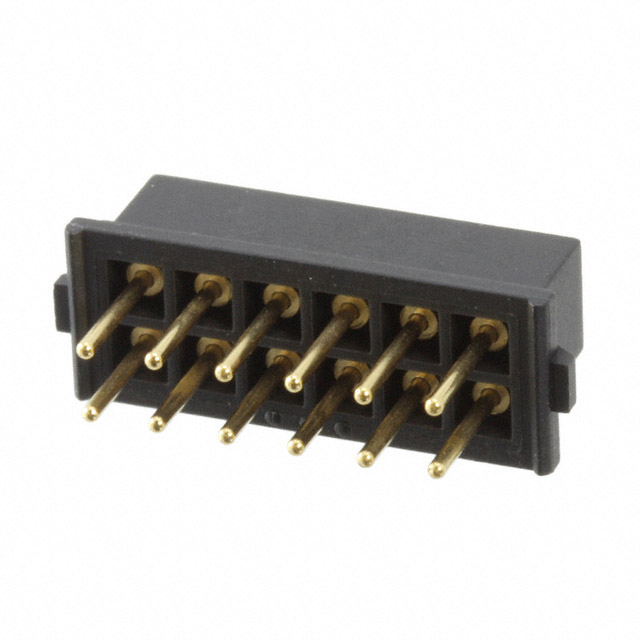

M80-8501245
ActiveHarwin Inc.
BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 12, 2 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-8501245
ActiveHarwin Inc.
BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 12, 2 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8501245 |
|---|---|
| Applications | Automotive, Military, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height [z] | 5.14 mm |
| Insulation Height [z] | 0.202 in |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mated Stacking Heights | 7.85 mm, 7.23 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-850 Series
| Part | Contact Material | Connector Type | Number of Positions | Material Flammability Rating | Mated Stacking Heights | Termination | Insulation Height [z] | Insulation Height [z] | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Voltage Rating | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Material | Mounting Type | Number of Rows | Insulation Color | Fastening Type | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Contact Shape | Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Beryllium Copper | Receptacle | 14 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 10 çin | 0.25 çm | Gold | 0.118 in | 3 mm | Gold | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 26 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 157.5 Áin | 4 Ám | Gold | 0.118 in | 3 mm | Tin | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 12 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 10 çin | 0.25 çm | Gold | 0.118 in | 3 mm | Gold | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 8 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 10 çin | 0.25 çm | Gold | 0.118 in | 3 mm | Gold | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 10 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 157.5 Áin | 4 Ám | Gold | 0.118 in | 3 mm | Tin | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 18 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 10 çin | 0.25 çm | Gold | 0.118 in | 3 mm | Gold | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 12 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 10 çin | 0.25 çm | Gold | 0.118 in | 3 mm | Gold | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 6 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 157.5 Áin | 4 Ám | Gold | 0.118 in | 3 mm | Tin | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | 10 | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 10 çin | 0.25 çm | Gold | 0.118 in | 3 mm | Gold | Circular | Board to Board Cable | |
Harwin Inc. | Beryllium Copper | Receptacle | UL94 V-0 | 7.23 mm 7.85 mm | Solder | 5.14 mm | 0.202 in | 0.079 in | 2 mm | 12 µin | 0.3 µm | All | -55 °C | 125 °C | Female Socket | 800 V | 0.079 in | 2 mm | Glass Filled Nylon 4/6 Polyamide (PA46) | Through Hole | 2 | Black | Locking Ramp | Automotive General Purpose Military | 157.5 Áin | 4 Ám | Gold | 0.118 in | 3 mm | Tin | Circular | Board to Board Cable | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-850 Series
12 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
