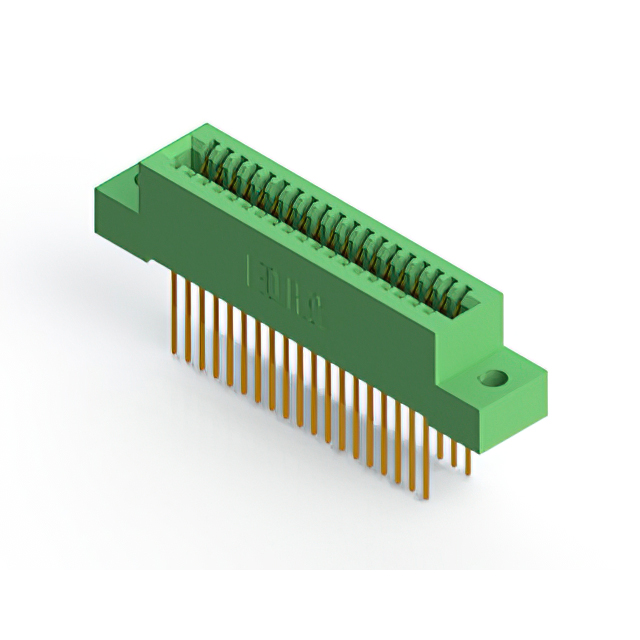

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
325-038-540-209
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-038-540-209 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 0.16 in |
| Flange Feature [diameter] | 4.06 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
325-038 Series
| Part | Termination | Number of Rows | Termination Rows | Color | Gender | Pitch [x] | Pitch [x] | Contact Material | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Material - Insulation | Contact Type | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Number of Positions/Bay/Row [custom] | Read Out | Card Thickness | Card Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Wire Wrap | 1 | 1 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -65 ░C | Non Specified - Single Edge | 38 | Single | 3.18 mm | 0.125 in | ||
EDAC Inc. | Solder Eyelet(s) | 2 | 2 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | Flush Mount Top Opening Unthreaded | 125 °C | -65 ░C | Non Specified - Dual Edge | 19 | Dual | 3.18 mm | 0.125 in | 0.16 in | 4.06 mm |
EDAC Inc. | Wire Wrap | 2 | 2 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | Flush Mount Top Opening Unthreaded | 125 °C | -65 ░C | Non Specified - Dual Edge | 19 | Dual | 3.18 mm | 0.125 in | 0.16 in | 4.06 mm |
EDAC Inc. | Solder | 2 | 2 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -65 ░C | Non Specified - Dual Edge | 19 | Dual | 3.18 mm | 0.125 in | ||
EDAC Inc. | Wire Wrap | 2 | 2 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -65 ░C | Non Specified - Dual Edge | 19 | Dual | 3.18 mm | 0.125 in | |||
EDAC Inc. | Solder | 1 | 1 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -65 ░C | Non Specified - Single Edge | 38 | Single | 3.18 mm | 0.125 in | ||
EDAC Inc. | Wire Wrap | 1 | 1 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -65 ░C | Non Specified - Single Edge | 38 | Single | 3.18 mm | 0.125 in | ||
EDAC Inc. | Solder | 2 | 2 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -65 ░C | Non Specified - Dual Edge | 19 | Dual | 3.18 mm | 0.125 in | ||
EDAC Inc. | Solder Eyelet(s) | 1 | 1 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | 125 °C | -65 ░C | Non Specified - Single Edge | 38 | Single | 3.18 mm | 0.125 in | |||
EDAC Inc. | Solder Eyelet(s) | 1 | 1 | Green | Female | 2.54 mm | 0.1 in | Copper Alloy | Through Hole | Gold | 10 Áin | 0.25 Ám | 38 | Diallyl Phthalate (DAP) | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 125 °C | -65 ░C | Non Specified - Single Edge | 38 | Single | 3.18 mm | 0.125 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
325-038 Series
38 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
