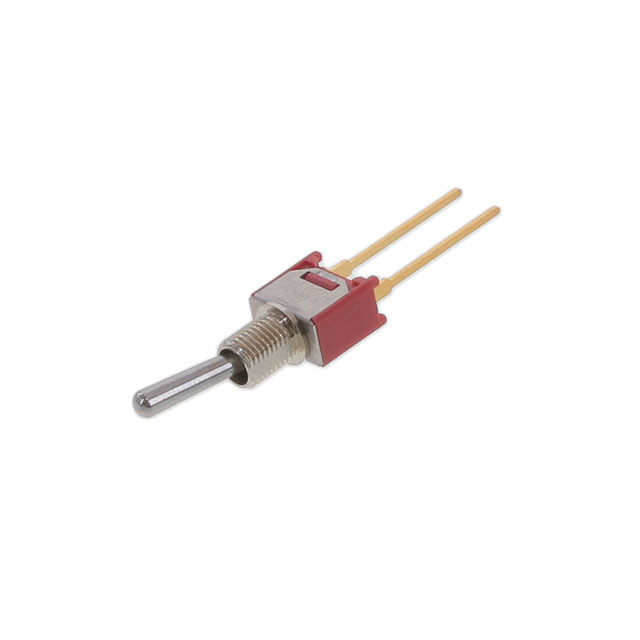

200MSP6T1B1M5RE

Active

E-Switch

SWITCH TOGGLE SPST 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPST 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	200MSP6T1B1M5RE

Actuator Length [x]	9.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	10-48
Circuit	SPST
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	On-Off
Termination Style	Wire Wrap
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Actuator Material	Termination Style	Actuator Length [x]	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Bushing Thread	Circuit	Voltage Rating - AC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Switch Function	Actuator Type	Electrical Life
E-Switch 200MSP6T1B1M5RE	Brass Chrome Plated	Wire Wrap	9.4 mm	Non-Illuminated	-30 ░C	85 °C	Epoxy Sealed Terminals	10-48	SPST	20 V	0.4 VA	4.95 mm	20 V	On-Off	Standard Round	30000 Cycles
E-Switch 200MSP6T1B1M2RE	Brass Chrome Plated	PC Pin	9.4 mm	Non-Illuminated	-30 ░C	85 °C	Epoxy Sealed Terminals	10-48	SPST	20 V	0.4 VA	4.95 mm	20 V	On-Off	Standard Round	30000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount

Technical documentation and resources

No documents available
