09120022754

Active

HARTING Technology Group

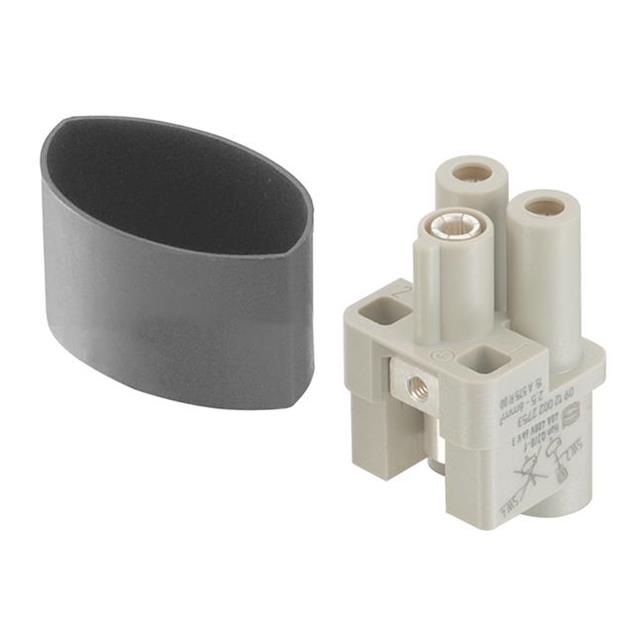

HAN Q 2/0 HV FEMALE AXIAL SCREW (40A) 2.5 6MM2 14-10AWG

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN Q 2/0 HV FEMALE AXIAL SCREW (40A) 2.5 6MM2 14-10AWG

Technical Specifications

Parameters and characteristics for this part

Specification	09120022754

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	40 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Screw
Voltage Rating	600 V

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Housing Material	Voltage Rating	Contact Material	Color	Material Flammability Rating	Termination Style	Contact Finish	Gender	Size	Number of Positions
HARTING Technology Group 09120022653	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	400 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Male	3 A
HARTING Technology Group 09120022754	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	600 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Female	3 A
HARTING Technology Group 09120022752	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	600 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Female	3 A	Ground
HARTING Technology Group 09120022656	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	830 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Male	3 A
HARTING Technology Group 09120022651	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	400 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Male	3 A	Ground
HARTING Technology Group 09120022751	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	400 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Female	3 A	Ground
HARTING Technology Group 09120022654	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	600 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Male	3 A
HARTING Technology Group 09120022756	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	830 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Female	3 A
HARTING Technology Group 09120022652	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	600 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Male	3 A	Ground
HARTING Technology Group 09120022753	40 A	125 °C	-40 °C	2	Polycarbonate (PC)	400 V	Copper Alloy	Gray	UL94 V-0	Screw	Silver	Female	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 2 Position Screw
