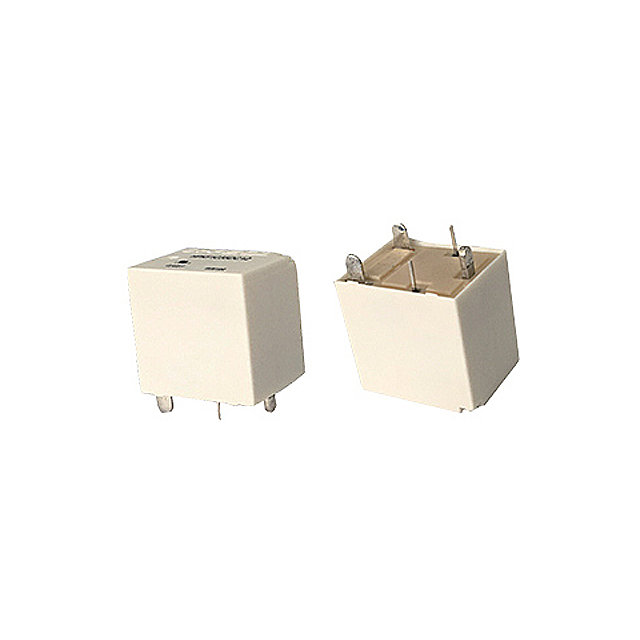

HPKF1A35DC12S1.5

Active

Hasco Relays

277V@AC 12V 35A ONE NORMALLY OPEN: 1A (SPST-NO) PLUGIN POWER RELAYS ROHS

Search across all available documentation for this part.

Active

Hasco Relays

277V@AC 12V 35A ONE NORMALLY OPEN: 1A (SPST-NO) PLUGIN POWER RELAYS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Coil Voltage	Switching Voltage [Max]	Operate Time	Must Operate Voltage	Contact Rating (Current)	Coil Type	Must Release Voltage	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Insulation	Coil Current	Mounting Type	Contact Material
Hasco Relays HPKF1A35DC12S1.5	PC Pin	12 VDC	277 VAC	15 ms	9.6 VDC	35 A	Non Latching	0.6 VDC	10 ms	-40 °C	60 °C	SPST-NO (1 Form A)	Class F	150 mA	Through Hole	Silver Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
