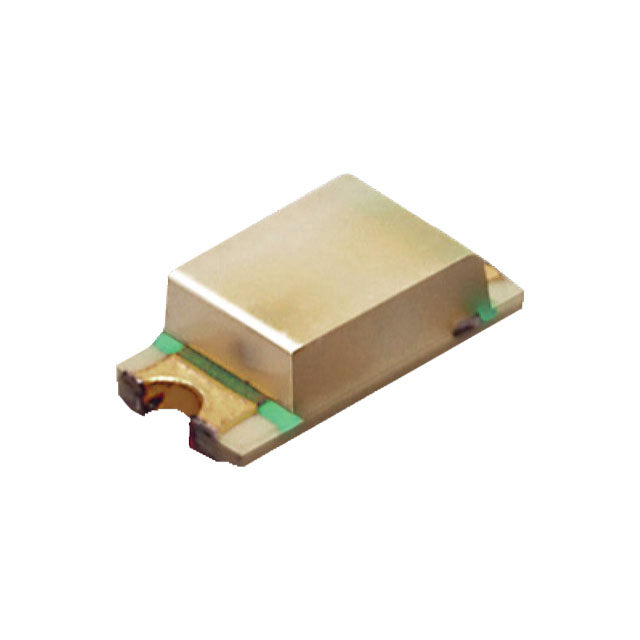

SML-D14YWT86C

Active

Rohm Semiconductor

LED YELLOW 1608 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAEC-Q101 Automotive Requirements

SML-D14YWT86C

Active

Rohm Semiconductor

LED YELLOW 1608 SMD

Deep-Dive with AI

DocumentsAEC-Q101 Automotive Requirements

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-D14YWT86C

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Grade	Automotive
Height (Max) [Max] [z]	0.65 mm
Lens Color	White
Lens Size [x]	1.2 mm
Lens Size [y]	0.8 mm
Lens Style	Rectangle with Flat Top
Millicandela Rating	200 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Qualification	AEC-Q102
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Supplier Device Package	0603
Supplier Device Package	1608
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	590 nm

SML-D14VW(C) Series

Automotive, industry standard 1608 Size, Red chip LED

Part	Mounting Type	Color	Lens Style	Supplier Device Package	Supplier Device Package	Wavelength - Dominant	Lens Color	Current - Test	Package / Case	Lens Size [y]	Lens Size [x]	Lens Transparency	Height (Max) [Max] [z]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Grade	Configuration	Qualification
Rohm Semiconductor SML-D14MWT86A	Surface Mount	Yellow-Green	Rectangle with Flat Top	0603	1608	571 nm	Colorless	20 mA	0603 (1608 Metric)	0.8 mm	1.2 mm	Clear	0.65 mm	60 mcd	2.1 V	1.6 mm	0.8 mm
Rohm Semiconductor SML-D14YWT86C	Surface Mount	Yellow	Rectangle with Flat Top	0603	1608	590 nm	White	20 mA	0603 (1608 Metric)	0.8 mm	1.2 mm		0.65 mm	200 mcd	2.1 V	1.6 mm	0.8 mm	Automotive	Standard	AEC-Q102
Rohm Semiconductor SML-D14VWT86C	Surface Mount	Red	Rectangle with Flat Top	0603	1608	630 nm	White	20 mA	0603 (1608 Metric)	0.8 mm	1.2 mm		0.65 mm	100 mcd	2 V	1.6 mm	0.8 mm	Automotive	Standard	AEC-Q102
Rohm Semiconductor SML-D14WWT86A	Surface Mount	Yellow	Rectangle with Flat Top	0603	1608	587 nm	Colorless	20 mA	0603 (1608 Metric)	0.8 mm	1.2 mm	Clear	0.65 mm	180 mcd	2.1 V	1.6 mm	0.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.46
		10	$ 0.26
		100	$ 0.17
		500	$ 0.13
		1000	$ 0.12
	Digi-Reel®	1	$ 0.46
		10	$ 0.26
		100	$ 0.17
		500	$ 0.13
		1000	$ 0.12
	Tape & Reel (TR)	3000	$ 0.10
		6000	$ 0.10
		9000	$ 0.09
		15000	$ 0.09
		21000	$ 0.09
		30000	$ 0.08
		75000	$ 0.08

Description

General part information

SML-D14VW(C) Series

SML-D1(C) series is an automotive grade small surface-mount type chip LED compliant with AEC-Q102. It is a mass-produced package with a wide range of color and luminous intensity lineup and a proven market track record.
