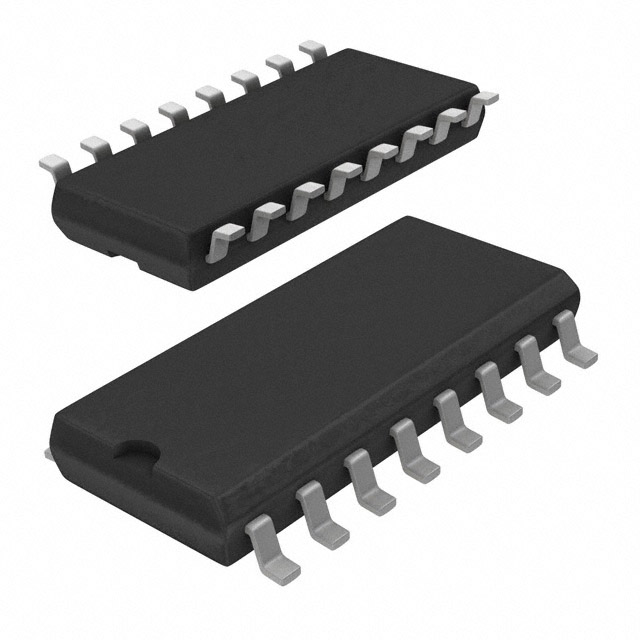

TC74HC4040AF(EL,F)
Toshiba Semiconductor and Storage
IC BINARY COUNTER 12-BIT 16SOP
Deep-Dive with AI
Search across all available documentation for this part.
TC74HC4040AF(EL,F)
Toshiba Semiconductor and Storage
IC BINARY COUNTER 12-BIT 16SOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TC74HC4040AF(EL,F) |
|---|---|
| Direction | Up |
| Logic Type | Binary Counter |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 12 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.209 " |
| Package / Case | 16-SOIC |
| Package / Case | 5.3 mm |
| Reset | Asynchronous |
| Supplier Device Package | 16-SOP |
| Trigger Type | Negative Edge |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.26 | |
| 4000 | $ 0.24 | |||
| 6000 | $ 0.23 | |||
| 10000 | $ 0.21 | |||
| 14000 | $ 0.21 | |||
| 20000 | $ 0.21 | |||
Description
General part information
74HC4040 Series
Counter IC Binary Counter 1 Element 12 Bit Negative Edge 16-SOP
Documents
Technical documentation and resources
No documents available
