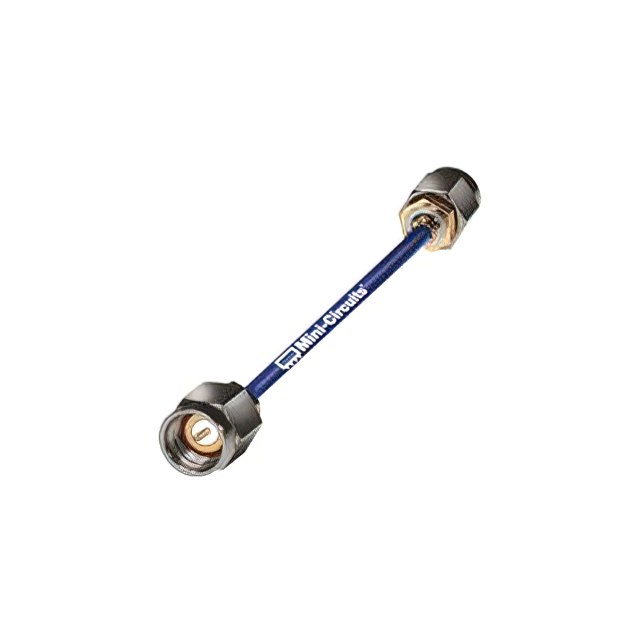

086-4SM+

Active

MINI-CIRCUITS

RF CABLE ASSEMBLIES HAND-FLEX INTERCONNECT, 0.086" CENTER DIAMETER, 18.0 GHZ

Search across all available documentation for this part.

Active

MINI-CIRCUITS

RF CABLE ASSEMBLIES HAND-FLEX INTERCONNECT, 0.086" CENTER DIAMETER, 18.0 GHZ

Technical Specifications

Parameters and characteristics for this part

Part	2nd Contact Gender	1st Contact Gender	Operating Temperature [Max]	Operating Temperature [Min]	2nd Connector Mounting Type	Style	1st Connector Mounting Type	Frequency - Max [Max]	Cable Type	Cable Type	2nd Connector	1st Connector	Overall Impedance	Color	Length	Length	2nd Connector	Style [Min]	Style [Max]
MINI-CIRCUITS 086-4SM+	Male	Male	105 ░C	-55 °C	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	18 GHz	Hand Formable	0.086	SMA Plug	SMA Plug	50 Ohms	Blue	4 in	101.6 mm
MINI-CIRCUITS 086-4KM+	Male	Male	85 °C	-55 °C	Free Hanging (In-Line)		Free Hanging (In-Line)	40 GHz	Hand Formable	0.086		2.92mm Plug	50 Ohms	Blue	4 in	101.6 mm	2.92 mm	2.92 mm	2.92 mm
MINI-CIRCUITS 086-4SMR+	Male	Male	105 ░C	-55 °C	Free Hanging (In-Line)	SMA to SMA	Free Hanging (In-Line)	18 GHz	Hand Formable	0.086	SMA Plug Right Angle	Right Angle SMA Plug	50 Ohms	Blue	4 in	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 4.000" (101.60mm)
