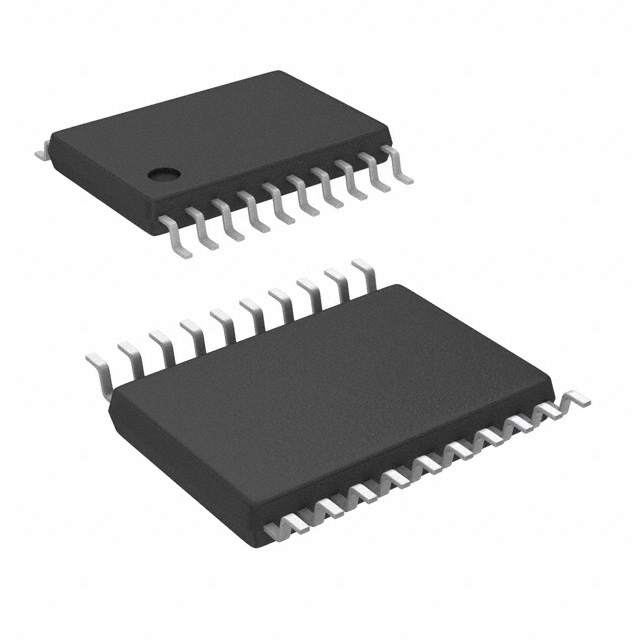

C8051F530A-IT

Active

Silicon Labs

IC MCU 8BIT 8KB FLASH 20TSSOP

Search across all available documentation for this part.

Active

Silicon Labs

IC MCU 8BIT 8KB FLASH 20TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	C8051F530A-IT

Connectivity	LINbus, UART/USART, SPI
Core Processor	8051
Core Size	8-Bit
Data Converters [custom]	16
Data Converters [custom]	12 b
Mounting Type	Surface Mount
Number of I/O	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	20-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Peripherals	PWM, WDT, Brown-out Detect/Reset, POR, Temp Sensor
Program Memory Type	FLASH
RAM Size	256 x 8
Speed	25 MHz
Supplier Device Package	20-TSSOP
Voltage - Supply (Vcc/Vdd) [Max]	5.25 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Number of I/O	Core Processor	Peripherals	Package / Case	RAM Size	Core Size	Oscillator Type	Operating Temperature [Min]	Operating Temperature [Max]	Program Memory Type	Speed	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Connectivity	Data Converters [custom]	Data Converters [custom]	Supplier Device Package	Mounting Type	Package / Case [y]	Package / Case [x]
Silicon Labs C8051F530-C-IM	16	8051	Brown-out Detect/Reset POR PWM Temp Sensor WDT	20-VFQFN Exposed Pad	256 x 8	8-Bit	Internal	-40 °C	125 °C	FLASH	25 MHz	5.25 V	2 V	LINbus SPI UART/USART	16	12 b	20-QFN (4x4)	Surface Mount
Silicon Labs C8051F530A-IT	16	8051	Brown-out Detect/Reset POR PWM Temp Sensor WDT	20-TSSOP	256 x 8	8-Bit	Internal	-40 °C	125 °C	FLASH	25 MHz	5.25 V	1.8 V	LINbus SPI UART/USART	16	12 b	20-TSSOP	Surface Mount	4.4 mm	0.173 in
Silicon Labs C8051F530-C-IMR	16	8051	Brown-out Detect/Reset POR PWM Temp Sensor WDT	20-VFQFN Exposed Pad	256 x 8	8-Bit	Internal	-40 °C	125 °C	FLASH	25 MHz	5.25 V	2 V	LINbus SPI UART/USART	16	12 b	20-QFN (4x4)	Surface Mount
Silicon Labs C8051F530-IT	16	8051	Brown-out Detect/Reset POR PWM Temp Sensor WDT	20-TSSOP	256 x 8	8-Bit	Internal	-40 °C	125 °C	FLASH	25 MHz	5.25 V	2 V	LINbus SPI UART/USART	16	12 b	20-TSSOP	Surface Mount	4.4 mm	0.173 in
Silicon Labs C8051F530-IM	16	8051	Brown-out Detect/Reset POR PWM Temp Sensor WDT	20-VFQFN Exposed Pad	256 x 8	8-Bit	Internal	-40 °C	125 °C	FLASH	25 MHz	5.25 V	2 V	LINbus SPI UART/USART	16	12 b	20-QFN (4x4)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8051 C8051F53x Microcontroller IC 8-Bit 25MHz 8KB (8K x 8) FLASH 20-TSSOP
