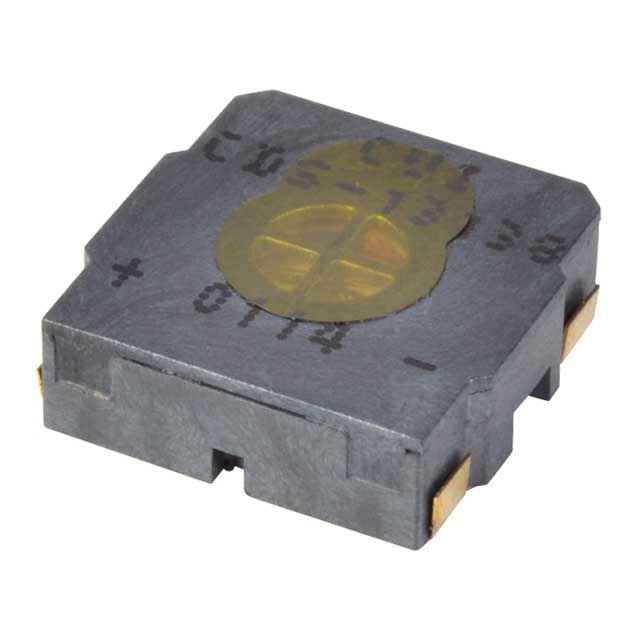

CDS-13138-SMT-TR
ActiveCUI Devices
SPEAKER 8OHM 700MW TOP PORT 70DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDS-13138-SMT-TR
ActiveCUI Devices
SPEAKER 8OHM 700MW TOP PORT 70DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDS-13138-SMT-TR |
|---|---|
| Efficiency - dBA | 70 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1.05 kHz |
| Frequency Range [Max] | 1.26 kHz |
| Frequency Range [Min] | 840 Hz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Impedance | 8 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Sm2Co17 |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Ratings | Washable |
| Shape | Square |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.59 | |
| 10 | $ 4.55 | |||
| 25 | $ 4.20 | |||
| 50 | $ 3.95 | |||
| 100 | $ 3.72 | |||
| 250 | $ 3.69 | |||
| Digi-Reel® | 1 | $ 5.59 | ||
| 10 | $ 4.55 | |||
| 25 | $ 4.20 | |||
| 50 | $ 3.95 | |||
| 100 | $ 3.72 | |||
| 250 | $ 3.69 | |||
| Tape & Reel (TR) | 600 | $ 3.84 | ||
Description
General part information
CDS-13138 Series
8 Ohms General Purpose Speaker 700 mW 840 Hz ~ 1.26 kHz Top Square
